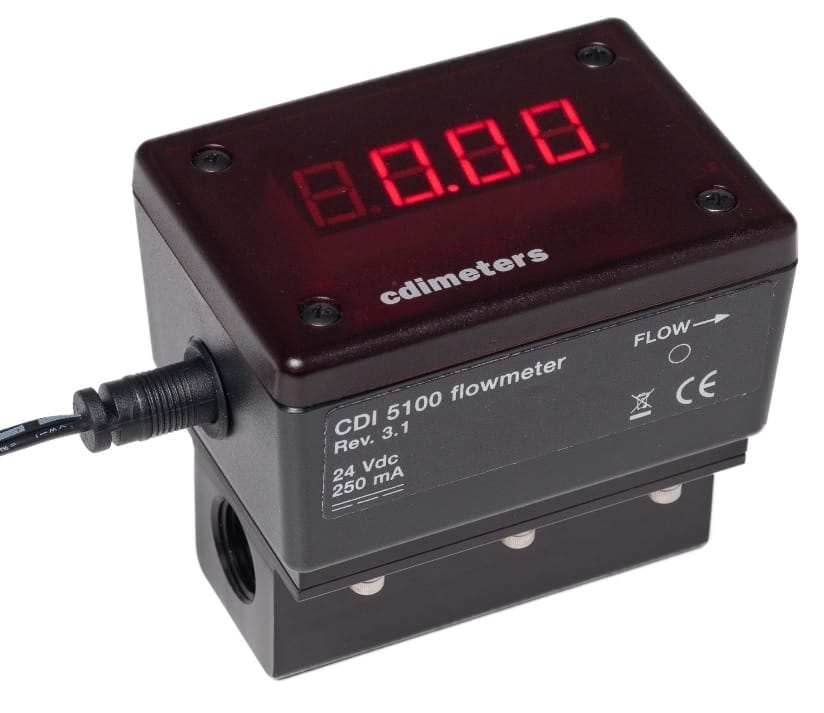

The CDI 5100 is a compressed air flow meter capable of monitoring low flow rates using an inline flow meter. The flow meter connects to a pipeline using either a ⅜” NPT or ½” NPT threads.
The CDI 5100 extends the capability of the CDI 5000 series to the low flow rates found in many point-of-use applications. It does this by concentrating the flow into a small area that is chosen to optimize the tradeoff between pressure drop and low-flow sensitivity. Used in its intended flow range and at a pressure of 100 psig, the 5100 will create a pressure drop no greater than one psi
Like the other 5000-series flow meters, the 5100 is a thermal mass design, using one probe to sense the air temperature and maintaining the other ten degrees warmer. By concentrating the flow where it passes the two probes, it is able to measure low air flows without requiring small passages that could clog or create excessive pressure drops.
The meter is furnished with a carefully-reamed six-inch piece of size-specific pipe to be installed where the air enters the meter. With this pipe in place, there is no other requirement for flow conditioning or straight upstream pipe. The meter may be installed between quick disconnect fittings to test air usage by small pieces of equipment.
| Accuracy: | 5% of RDG + 1% FSD at air temperatures from 4 to 49°C |
| Medias: | Compressed air and Nitrogen |
| Operating pressure: | 200 psig maximum |
| Input power: | 250mA at 24vDC |
| Materials exposed to measured fluid: | Aluminium, Stainless steel, gold, thermal epoxy and Viton (seal) |
| Display: | Four-digit LED display |
| Response time: | One second to 63 percent of final value |
| Nom Size | Range (scfm) | Model No. |
| 3/8″ NPT | 0 – 20 | CDI 5100-03S-20 |
| 1/2″ NPT | 0 – 40 | CDI 5100-05S-40 |
CDI-5100-03S-20
£590.55
CDI-5100-05S-40
£647.24

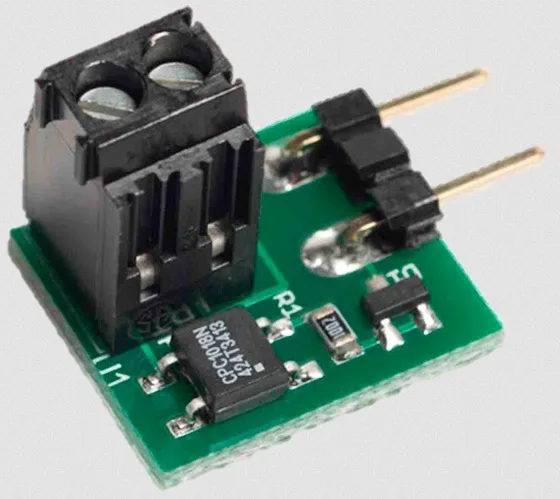

CDI-IPO
£33.06

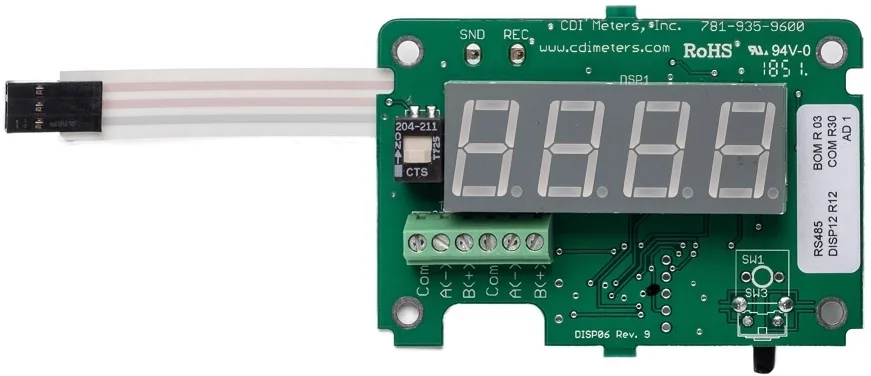

CDI-PSO
£174.84
