Description
This cable is suitable for use with the TK-4702, TK-4703 and TK-4802 data loggers for voltage and current inputs.
| Cable Length: | 1.5m |
| Weight: | 27g |
| Material: | PVC |
| Temp Rating: | -10 to +85°C |
| IP Rating: | IP30 (Not waterproof) |

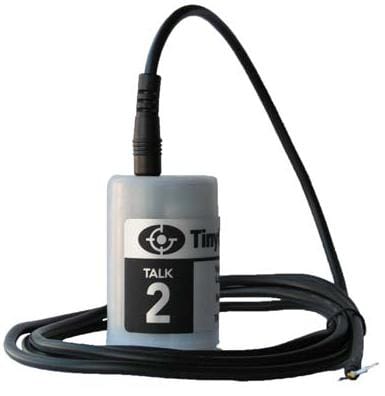

The Tinytag Talk 2 voltage and current loggers are supplied with a CAB-3233 Talk Voltage/Current Input Lead. The connection details for the cable, and a 3.5mm jack plug, are as follows:
| CAB-3233 | 3.5mm Jack Plug | Function |
| White | Tip | Sense Line |
| Yellow | Ring | Signal Input |
| Black | Shank | Common/0V |
The Sense line is a signal line that changes state when a reading is taken. The line goes from 0v to +3.5V, for approximately 85mS, whilst a reading is being taken (the line goes back to 0V when the reading cycle is complete). The line has an impedance of 100KΩ.
The Sense line does not need to be connected for the data loggers to record correctly and connecting just the yellow and black cable is sufficient for reading the voltage or mA signals.
