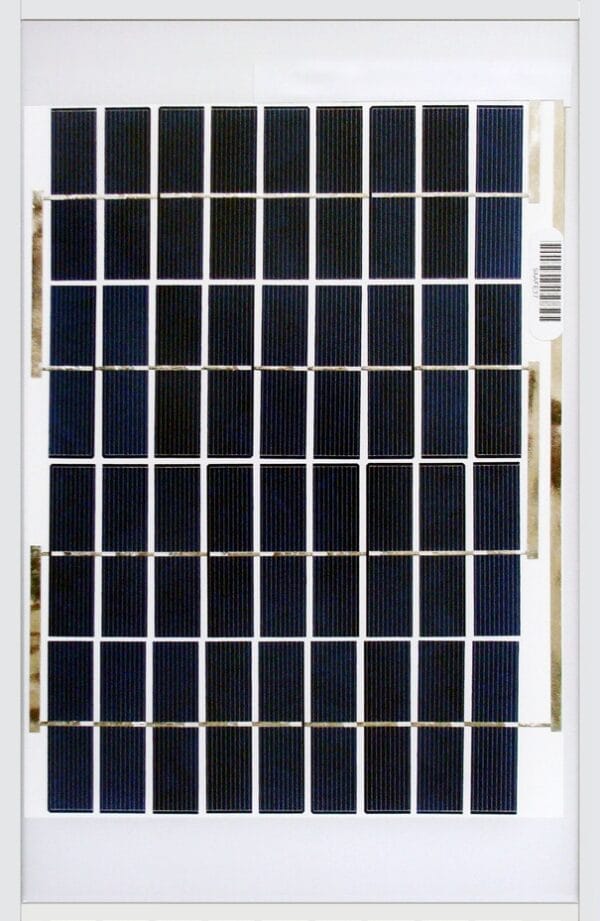

10M Multimount Ameresco Photovoltaic Solar Panel Max power 10W, with a charging current of up to 0.56A at a Nominal voltage of 12V (Max 17.9V). Panel includes 36 crystalline silicon cut cells connected in series with EVA encapsulated 3.2mm high transmission glass front cover and white polyester backing on to a Silver anodised Aluminium frame. The Multimount frame allows for side or rear mounting using M8 or 5/16″ hex-head bolts using dual channel grooves designed to prevent the hex bolts from rotating during tightening. A fully sealed junction box on the rear of the module includes a 4.6m PVC-jacketed cable and all electrical connections are fully sealed to prevent corrosion or moisture ingress. Panel dimensions: 421 x 269 x 23mm, weight 1.5Kg. 2 Year Warranty.
£61.17
Ameresco 10M Multimount Photovoltaic Solar Panel. Rated Power 10W at a Nominal Voltage 12V. The Multimount frame allows for side or rear mounting using M8 or 5/16″ hex-head bolts using dual channel grooves designed to prevent the hex bolts from rotating during tightening. 15ft PVC cable is potted into a fully sealed junction box to prevent corrosion or moisture ingress. Panel dimensions: 421 x 269 x 23mm, weight 1.5Kg.
