B-565

Name: B-565 - Omni Instruments
SKU: B-565
Price: 950.00 GBP
Availability: InStock

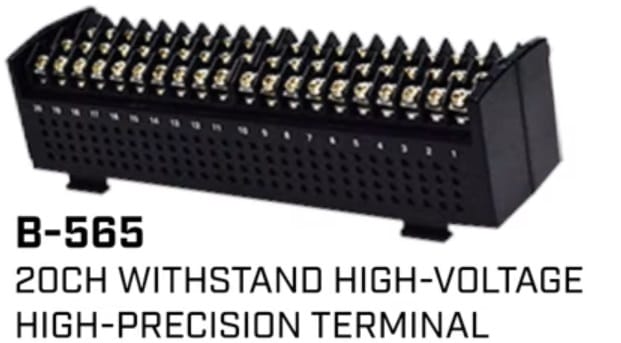

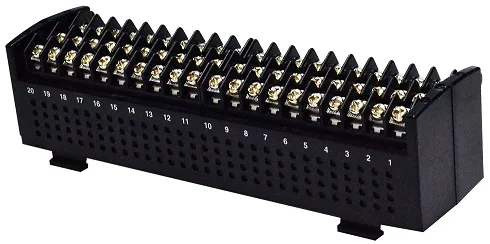

20 channel input terminal, Withstand High Voltage type. Suitable for the GL860 data logger.

£950.00

Need help finding the right product?

Parameter	Measurement Range
Voltages	20, 50, 100, 200, 500mV, 1, 2, 5, 10, 20, 50, 100V, 1-5V F.S.

Thermocouple Type	Measuring Temperature Range	Measurement Accuracy
R/S	0 ≤ TS ≤ 100°C	±4.5°C
	100 < TS ≤ 300°C	±3.0°C
	R: 300 < TS ≤ 1600°C	±2.2°C
	S: 300 < TS ≤ 1760°C	±2.2°C
B	400 ≤ TS ≤ 600°C	±3.5°C
	600 < TS ≤ 1820°C	±2.5°C
K	-200 ≤ TS ≤ -100°C	±1.5°C
	-100 < TS ≤ 1370°C	±0.8°C
E	-200 ≤ TS ≤ -100°C	±1.0°C
	-100 < TS ≤ 800°C	±0.8°C
T	-200 ≤ TS ≤ -100°C	±1.5°C
	-100 < TS ≤ 400°C	±0.6°C
J	-200 ≤ TS ≤ -100°C	±1.0°C
	100 < TS ≤ 100°C	±0.8°C
	100 < TS ≤ 1100°C	±0.6°C
N	-200 ≤ TS ≤ 0°C	±2.2°C
	0 < TS ≤ 1300°C	±1.0°C
C(W)	0 ≤ TS ≤ 2000°C	±1.8°C
Reference contact compensation accuracy		±0.3°C

Resistance Bulb Type	Measuring Temperature Range	Applied Current	Measurement Accuracy
PT100	-200 ≤ TS ≤ 100°C	1mA	±0.6°C
	100 < TS ≤ 500°C		±0.8°C
	500 < TS ≤ 850°C		±1.0°C
JPT100	-200 ≤ TS ≤ 100°C	1mA	±0.6°C
JPT100	100 < TS ≤ 500°C	1mA	±0.8°C
PT1000	-200 ≤ TS ≤ 100°C	0.3mA	±0.6°C
PT1000	100 < TS ≤ 500°C	0.3mA	±0.6°C

B-530 Humidity Sensor	Measurement Range
Humidity	0-100% Using optional
