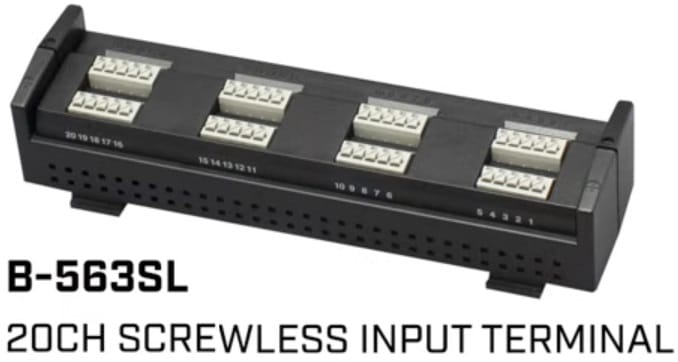

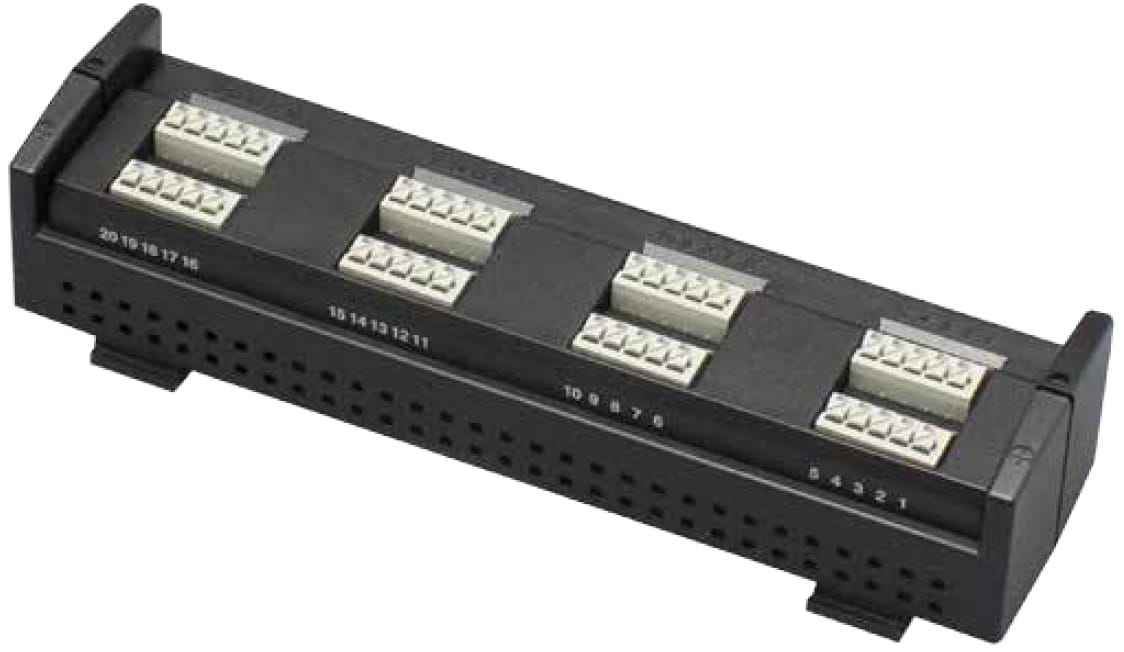

Description



Number of Input Channels 20 Channels
Input Terminal Type Screwless Terminals



Parameter Measurement Range
Voltages 20, 50, 100, 200, 500mV, 1, 2, 5, 10, 20, 50, 100V, 1-5V F.S.
Thermocouple Type Measuring Temperature Range Measurement Accuracy
R/S 0 ≤ TS ≤ 100°C ±5.2°C
100 < TS ≤ 300°C ±3.0°C
R: 300 < TS ≤ 1600°C ± (0.05% of reading +2.0°C)
S: 300 < TS ≤ 1760°C ± (0.05% of reading +2.0°C)
B 400 ≤ TS ≤ 600°C ±3.5°C
600 < TS ≤ 1820°C ± (0.05% of reading +2.0°C)
K -200 ≤ TS ≤ -100°C ± (0.05% of reading +2.0°C)
-100 < TS ≤ 1370°C ± (0.05% of reading +1.0°C)
E -200 ≤ TS ≤ -100°C ± (0.05% of reading +2.0°C)
-100 < TS ≤ 800°C ± (0.05% of reading +1.0°C)
T -200 ≤ TS ≤ -100°C ± (0.1% of reading +1.5°C)
-100 < TS ≤ 400°C ± (0.1% of reading +0.5°C)
J -200 ≤ TS ≤ -100°C ±2.7°C
100 < TS ≤ 100°C ±1.7°C
100 < TS ≤ 1100°C ± (0.05% of reading +1.0°C)
N -200 ≤ TS ≤ 0°C ± (0.1% of reading +2.0°C)
0 < TS ≤ 1300°C ± (0.1% of reading +1.0°C)
C(W) 0 ≤ TS ≤ 2000°C ± (0.1% of reading +1.5°C)
Reference contact compensation accuracy ±0.5°C
