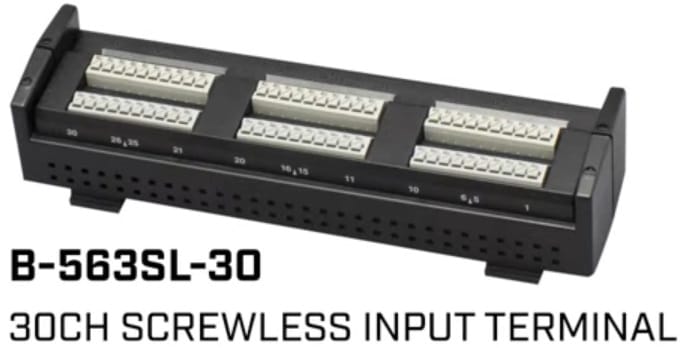

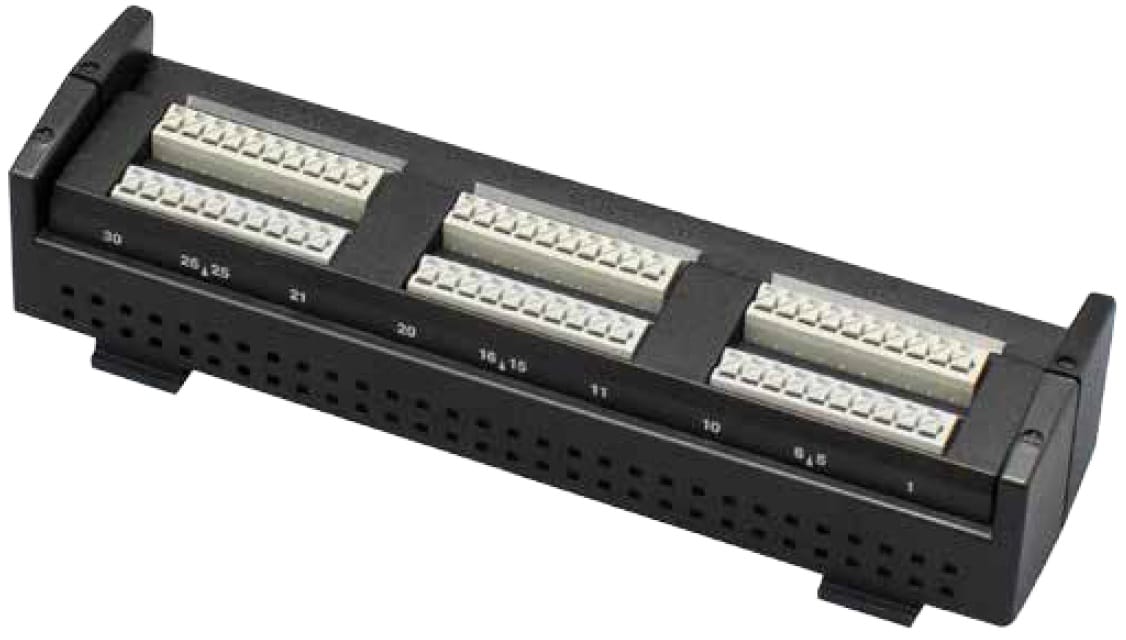

30 Channel Screwless Input Terminal, Multi-Input Type. Suitable for the GL860 data logger.
£699.00
 |
|
| Number of Input Channels | 30 Channels |
| Input Terminal Type | Screwless Terminals |
| Parameter | Measurement Range | |
| Voltages | 20, 50, 100, 200, 500mV, 1, 2, 5, 10, 20, 50, 100V, 1-5V F.S. | |
| Thermocouple Type | Measuring Temperature Range | Measurement Accuracy | |
| R/S | 0 ≤ TS ≤ 100°C | ±5.2°C | |
| 100 < TS ≤ 300°C | ±3.0°C | ||
| R: 300 < TS ≤ 1600°C | ± (0.05% of reading +2.0°C) | ||
| S: 300 < TS ≤ 1760°C | ± (0.05% of reading +2.0°C) | ||
| B | 400 ≤ TS ≤ 600°C | ±3.5°C | |
| 600 < TS ≤ 1820°C | ± (0.05% of reading +2.0°C) | ||
| K | -200 ≤ TS ≤ -100°C | ± (0.05% of reading +2.0°C) | |
| -100 < TS ≤ 1370°C | ± (0.05% of reading +1.0°C) | ||
| E | -200 ≤ TS ≤ -100°C | ± (0.05% of reading +2.0°C) | |
| -100 < TS ≤ 800°C | ± (0.05% of reading +1.0°C) | ||
| T | -200 ≤ TS ≤ -100°C | ± (0.1% of reading +1.5°C) | |
| -100 < TS ≤ 400°C | ± (0.1% of reading +0.5°C) | ||
| J | -200 ≤ TS ≤ -100°C | ±2.7°C | |
| 100 < TS ≤ 100°C | ±1.7°C | ||
| 100 < TS ≤ 1100°C | ± (0.05% of reading +1.0°C) | ||
| N | -200 ≤ TS ≤ 0°C | ± (0.1% of reading +2.0°C) | |
| 0 < TS ≤ 1300°C | ± (0.1% of reading +1.0°C) | ||
| C(W) | 0 ≤ TS ≤ 2000°C | ± (0.1% of reading +1.5°C) | |
| Reference contact compensation accuracy | ±0.5°C | ||
