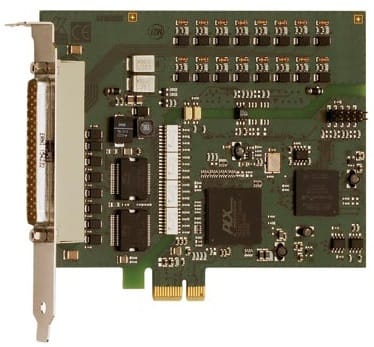

The APCIe-1500 is a PCI Express digital I/O board for up to 16 optically isolated digital inputs, including 14 interruptible inputs and 16 digital outputs (11-36V @ 500mA per channel, max 3A total). Suitable for digital inputs with a nominal 24V @ 6mA typical or 12V @ 4.2mA typical. The APCIe-1500 can monitor digital inputs with a max frequency of 5kHz. 16 digital outputs with a nominal 12 or 24V voltage. All connections via a 37-pin Sub-D male connector to screw terminal panels. Power supply 5V from PC @ 400mA. Built-in watchdog function, timer/counter and short-circuit protection. 64-bit drivers for Windows and Linux as well as programming samples are included, real-time drivers for Windows and Linux are available on request.
The boards of the APCIe-xxxx series are intended for use in an industrial environment: They are equipped with numerous protective circuits like filters, optical isolation, protection against overvoltage and short-circuits, etc. Thus they ensure a reliable and smooth operation, particularly in case of dangerous interferences like voltage peaks or high currents.
Using PCI boards and looking to upgrade to PCI Express boards, the PCI Express boards are functionally compatible with the related PCI boards. PCI Express boards include new technologies and will improve the performance of your installation. PCIe boards include all the standard functions and options of related PCI board and are fully compatible with existing cables, terminals and a PCIe migration driver programming service is available to assist the changeover from an existing PCI system.
Benefit from the new technologies and the new efficient FPGA components that have been added to the PCI Express boards. The FPGA technology allows for shorter cycle times and the PCI Express boards include FPGA components to reduce the cycle time of signal acquisition and regulation tasks. Use the full hardware and software capacity of your board and accelerate your processes. PCI Express boards use a serial interface instead of a parallel interface used by the PCI boards. The PCIe boards also utilise individual buses for each device connected to it instead of a shared one. These changes allow a 16 slot PCIe board to send or receive data at up to 16GB/s, compared to the 133MB/s achieved by PCI boards.
PCI Express boards come with useful software tools for a fast and convenient integration into your application: The ingenious driver concept, ADDIPACK, includes a wide range of drivers and samples, and a configuration tool assist you from the beginning. The PCIe migration driver programming service is also available to assist the changeover.
Inputs
Outputs
Safety Features
Digital Inputs
| APCIe-1500 | APCIe-1500-12V | |
| Number of Inputs: | 16 (Common grounds acc. to IEC 1131-2) | |
| Optical Isolation: | Through optical couplers, 1000 V from the PC to the peripheral | |
| Interruptible Inputs: | 14 of the 16 digital inputs | |
| Interruptible Lines: | IRQ line selected through BIOS | |
| Interrupt Comparison Logic: | AND or OR mode, OR priority | |
| Nominal Voltage: | 24V | 12V |
| Inputs Current: | 2mA typical | 1.5mA |
| Logic Input Level: | U nominal: 24V UH max: 30V UH min: 19V UL max: 14V UL min: 0V |
U nominal: 12V UH max: 16V UH min: 9V UL max: 6V UL min: 0V |
| Maximum Input Frequency: | 5 kHz | |
Digital Outputs
| Outputs: | 16 |
| Optical Isolation: | Through optical couplers, 1000V |
| Output Type: | High-side (Load at ground) acc. to IEC 1131-2 |
| Nominal Voltage: | 24V (APCIe-1500-12V, 12V) |
| Supply Voltage: | 11 to 36V, min. 7V (through front connector) |
| Max. Current for 8 Outputs: | 3A typical |
| Output Current/Channel: | 500mA typical/channel |
| Short-circuit Current/Shut-Down at 24V, Rload < 0.1W: |
1.5A |
| RDS ON Resistance: | 0.2 Ohms max |
| Switch-On Time: | l out=0.5A, Load = resistance: 50 μs |
| Switch-Off Time: | l out=0.5A, Load = resistance: 75 μs |
| Overtemperature (Shut-Down): | 135°C (Output driver) |
| Temperature hysteresis: | 15°C (Output driver) |
Physical and environmental conditions
| Dimensions: | 149 x 99 mm |
| System Bus: | Acc. to PCI Express base specification, Revision 1.0a (PCI Express 1.0a) |
| Place Required: | 1-/4-/8-/16-lane PCI Express slot |
| Operating Voltage: | +3.3V from the PC |
| Current Consumption: | Inputs and outputs inactive 320 mA ±10 %, typical 8 inputs/outputs active 400 mA ±10 %, typical 16 inputs/outputs active 470 mA ±10 %, typical |
| Front Connector: | 37-pin SUB-D male connector |
| Operating Temperature: | 0 to 60 °C (with forced cooling) |
| PX9000: | 3 row screw terminal panel for digital outputs |

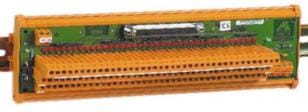

| PX901-D: | Screw terminal panel for digital I/O |
| PX901-DG: | Screw terminal panel for digital I/O, DIN Rail mounting |

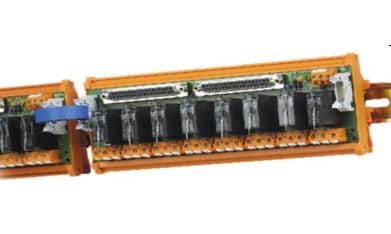

| PX8500-G: | Relay output board, cascadable, DIN Rail mounting |
| ST010: | Standard 37-pin D-Sub connection cable, 2m |
| ST011: | Standard 37-pin D-Sub connection cable, 5m |
| ST010-S | Same as ST010 but separate 24V supply cable. |
| ST021: | Round shielded cable between APCI-1500 & PX8500-G, 2m |
| ST022: | Round shielded cable between two PX8500, 2m |
| ST8500: | Ribbon cable for cascading two PX8500. |
APCIE-1500
£781.81
APCIE-1500-12V
£530.74
PX8500-G
£218.41
PX9000
£149.40
PX901-D
£117.81
