The Ameresco Photovoltaic Solar Panels are a direct replacement for the BP Solar Series 3 and 4 solar panels. These panels are advanced photovoltaic module that incorporates polycrystalline cells using SiN coating to give superior efficiency compared with same rated modules from other manufacturers. All the solar panels have ARC glass, an anti-reflective coating with self-cleaning properties so that under normal conditions panels do not require cleaning. The modules are robustly constructed using a clear anodised Universal frame and are offered with a warranty that will give you confidence in your system for many years ahead. Solar panels can be connected in parallel to increase power and are modular allowing the user the flexibility to build up a system over a period of time in line with budgets and power requirements.

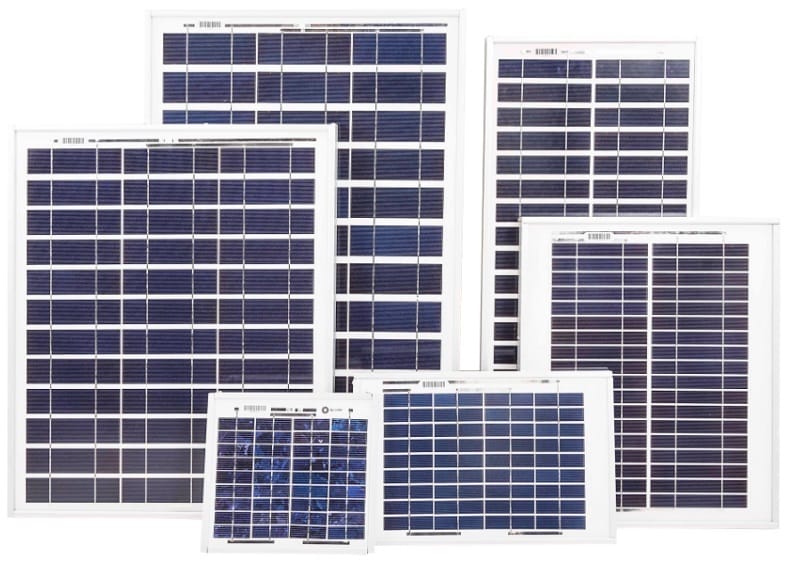

Available in power ranges from 10W to 140W
The Ameresco Solar panels are the direct replacements for the BP Solar range of solar panels. Ameresco acquired the manufacturing rights to the BP Solar panels and continue to make the panels to the same very high quality electrical and structural designs.
The panels have a 12V nominal output and are primarily designed for battery charging applications. These solar panels can be connected in parallel to increase power or series to increase the voltage and the accessible junction box allows easy access terminals and can be fitted with cable glands to additional connections. Each panels is modular and is flexible enough to allow users to building a system up over a period of time in line with budgets and power requirements. All of which, makes these panels suitable for use as battery rechargers on weather stations and other remote telecommunication & telemetry sites.
Contact us for help calculating the size of solar panel you need to power your system based on your own power requirements and geographical location.
Features
Specifications
| Ameresco Solar Panel | Rated Power | Nominal Voltage | Dimensions (mm) | Weight (Kg) |
| VLS140-T | 140W | 12V | 1504 x 674 x 50 | 12.0 |

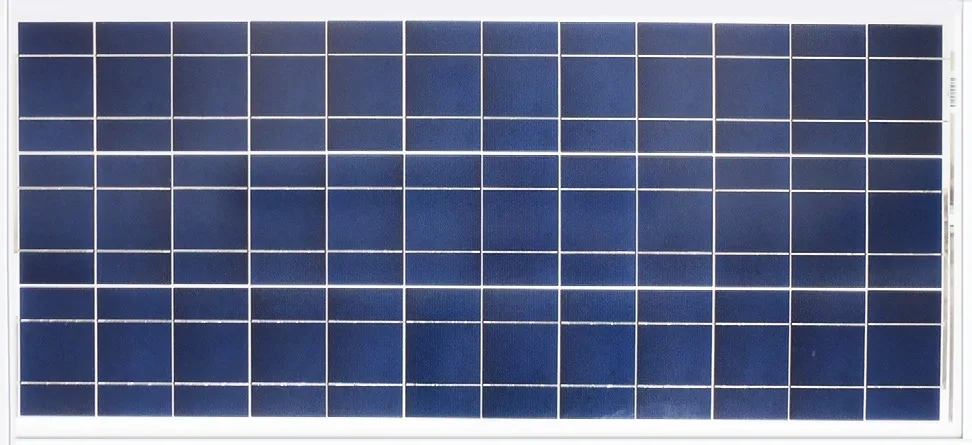

| VLS90-T | 90W | 12V | 1204 x 537 x 50 | 7.7 |
| VLS50 | 50W | 12V | 835 x 537 x 50 | 5.68 |

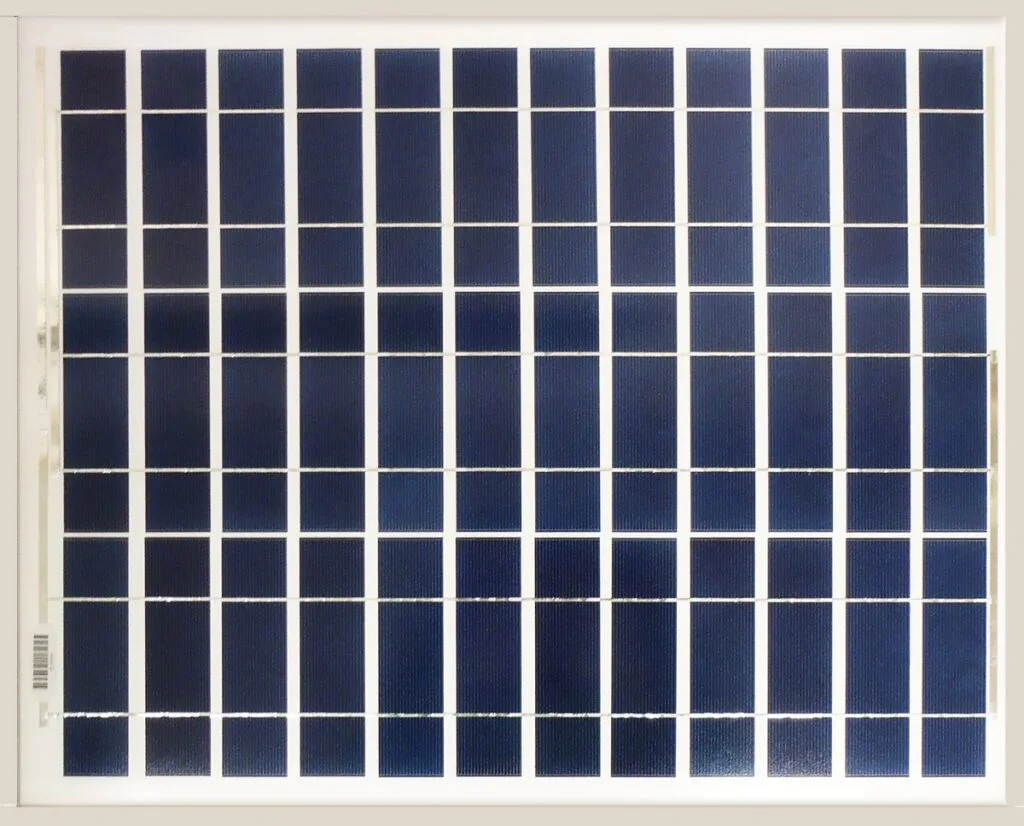

| 40J | 40W | 12V | 655 x 537 x 50 | 5.75 |

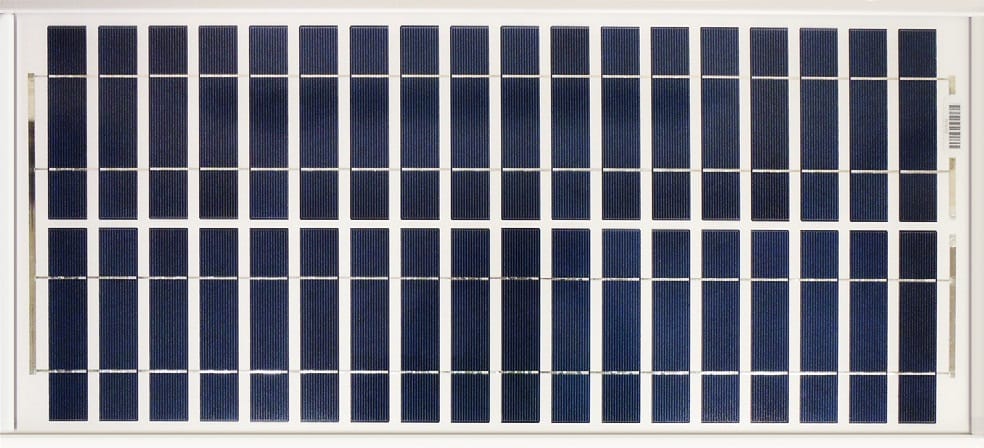

| 30J | 30W | 12V | 796 x 358 x 50 | 3.9 |

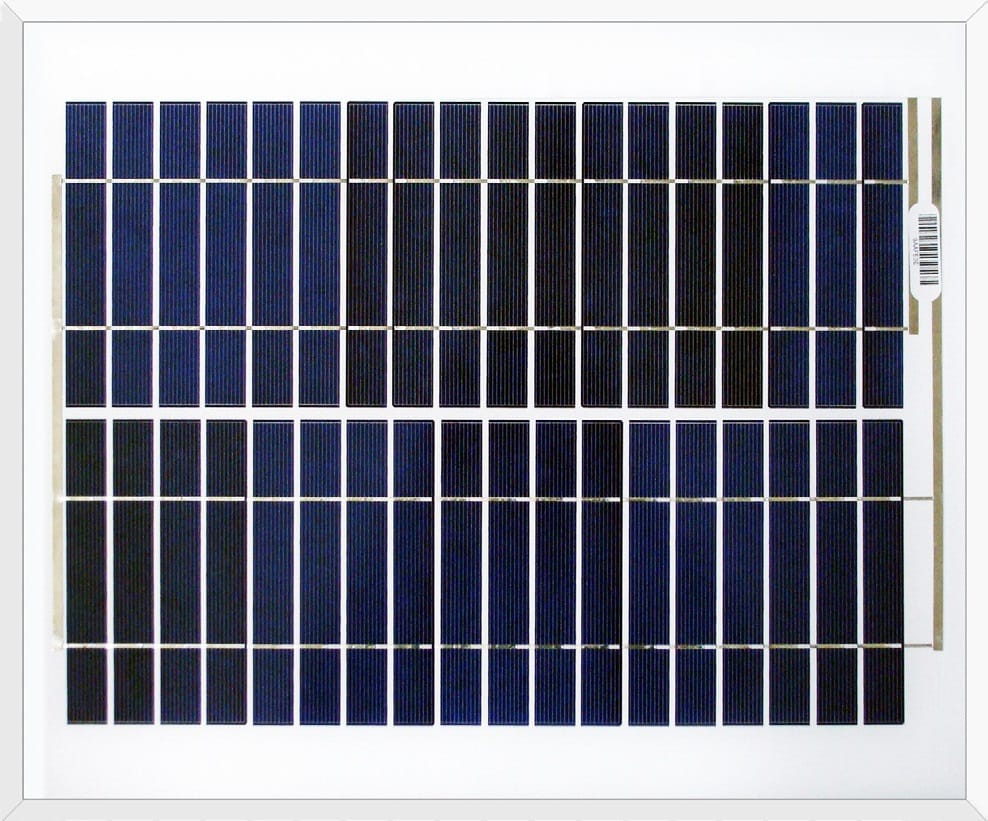

| 20J | 20W | 12V | 452 x 502 x 50 | 3.0 |

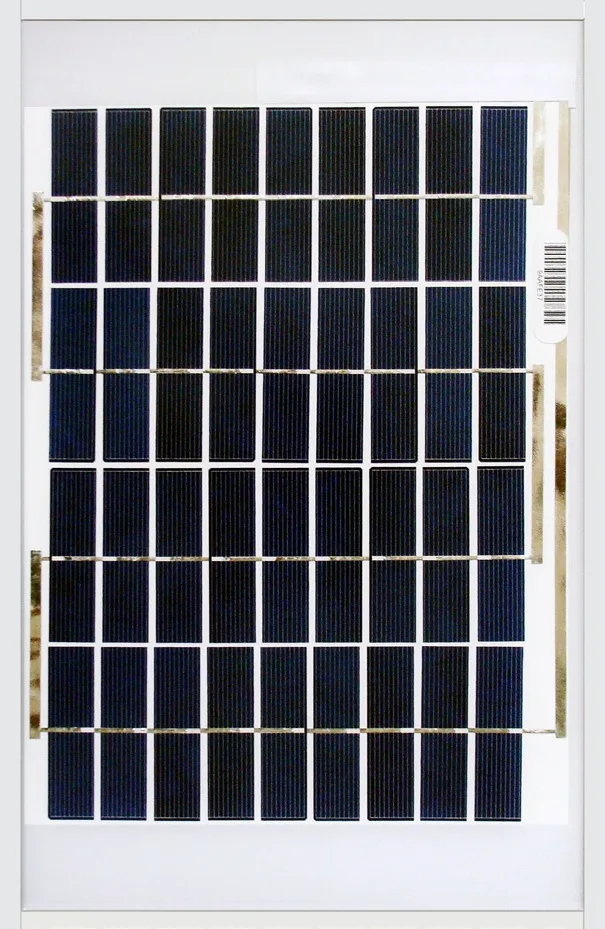

| 10M Multimount | 10W | 12V | 421 x 269 x 23 | 1.5 |
Due to the carriage cost of these panels, they are only available online for UK customer. Please contact us directly for a quotation for any orders for delivery outside the UK.
CA-10/91
£61.17
CA-10/152
£84.96
CA-10/153
£118.96
CA-10/154
£139.38

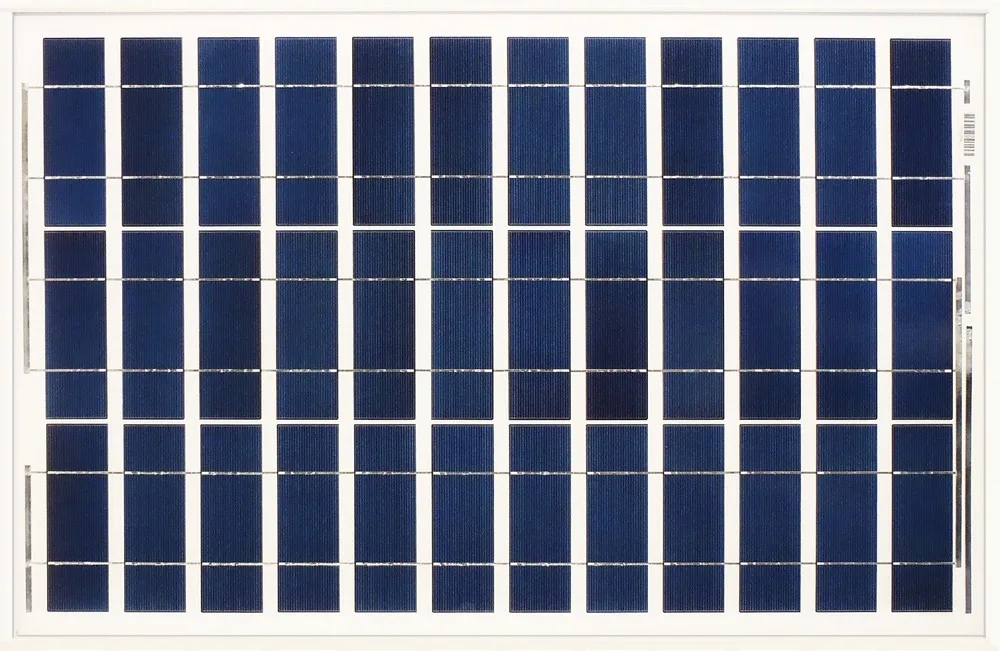

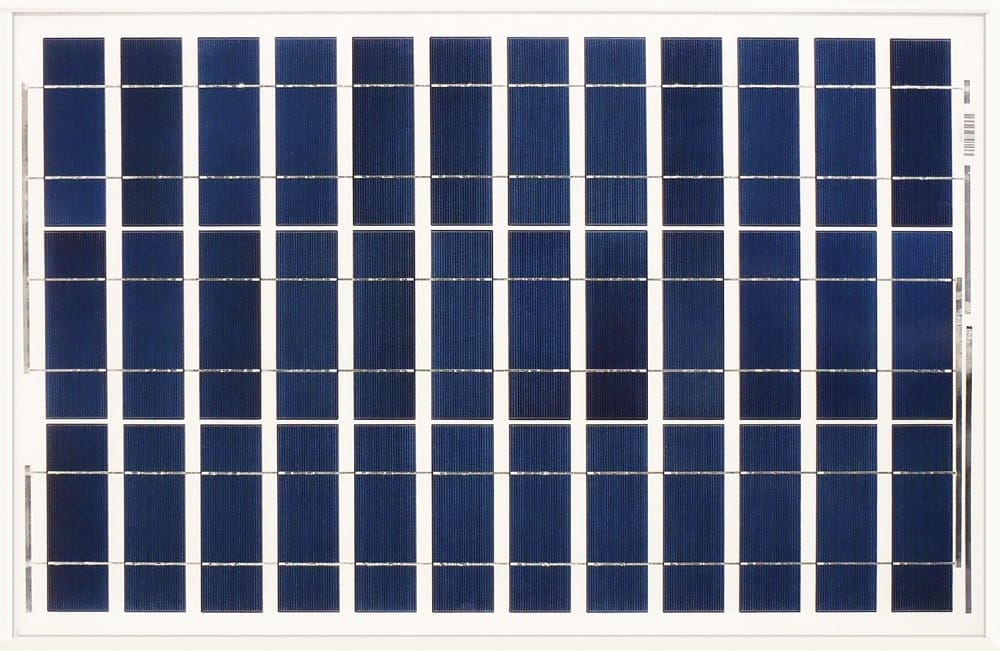

CA-10/155
£148.71
Need help with your products or have a question for us on our custom systems? Use the form below to send us a message and our experts will be in touch to help.
