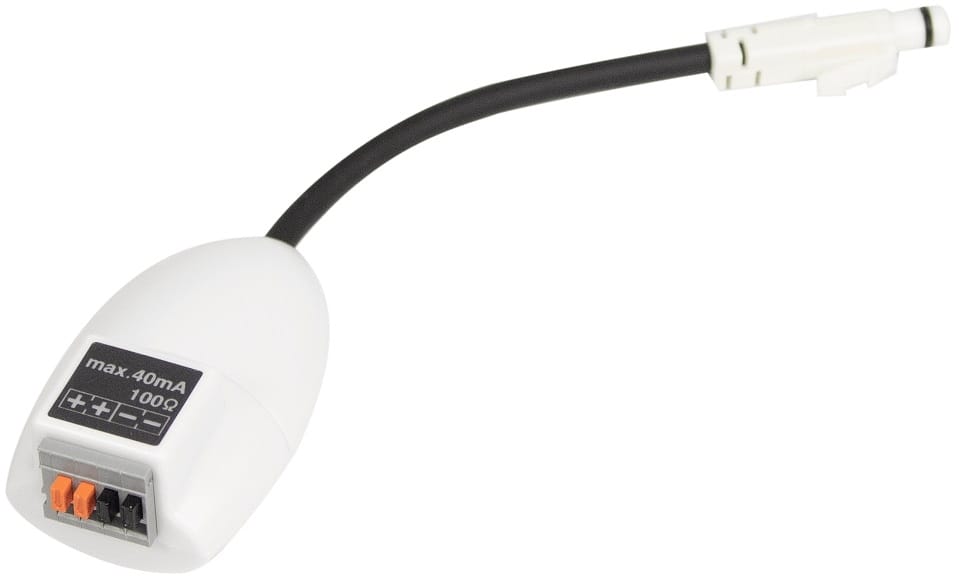

Current Input Module for RTR505B(L), TR55i-MA and RTR505-MA(L) Remote Units. Cable connects via a 4 Terminal cable insertion terminal, AWG22-28, strip length 9 to 10mm. Measurement Range: 0-20mA. Resolution: 0.01mA. Accuracy: ±0.1mA, +0.3% of reading (Module at Ambient Temperature). Module Operating Environment: Temperature -40 to 80°C, Humidity 90%RH or less (no condensation)
£65.75
| Measurement Range: | 0-20mA |
| Measurement Resolution: | 0.01mA |
| Measurement Accuracy: | ±0.1mA |
| Operating Environment: | Temperature -40 to 80°C, Humidity 90%RH or less (no condensation) |
| Sensor Connection: | 4 Terminal cable insertion terminal, AWG22-28, strip length 9 to 10mm. |
