Description
Specifications

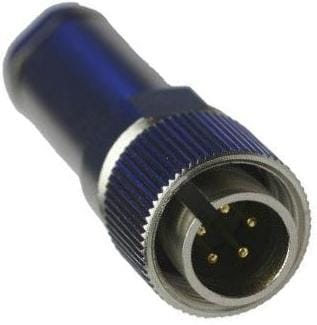

| ACS-9703 |
5-Pin Plug |
| Shell Material: | Brass and Zinc Alloy (Nickel plated) |
| Contact Material: | Cooper Alloy (Gold plated) |
| Temp Rating: | -40 to +85°C |
| IP Rating: | IP68 (-25 to 85°C) |
| Weight: | 15g |
Connection Information 1
Suitable for use with TE-4703, TE-4704, TE-4743, TE-4744, TGP-4703, TGP-4704, TGP-4804, TGPR-0704, TV-4703, TV-4704, TV-4804, TGRF-4703, TGRF-4704, TGRF-4743, TGRF-4744, TR-3703 and TR-3704
Connection Information 2
Suitable for use with TE-4101, TE-4102, TE-4201, TE-4202, TGP-4104, TGP-4204, TV-4104, TV-4204, TGRF-4101, TGRF-4102, TGRF-4201, TGRF-4202, TR-3101 and TR3201.
Tinytag data loggers use 3-wire measurement circuitry. 2, 3, or 4-wire probes can be connected to our loggers using our 5-pin plug. The wire colours mentioned in Connection Information 2 are commonly found on PT100 and PT1000 sensors. If different colours are used, please check connection details with your sensor supplier.
*When using a 2-wire probe, pins A and B on the plug should be shorted together.
**If your cable has a screen it can optionally be connected to this pin.
