Description

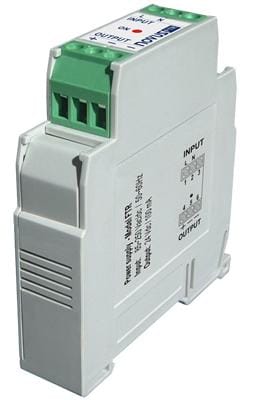

FTR series of switching power supplies of regulated and insulated voltages are targeted to industrial electrical devices. Built with advanced technology, they are appropriated to be installed in electrical panels since they have the reliability and robustness demanded from these environments.
Specification
| Power Supply: | 100-240vAC 50/60Hz |
| Output: | 24vDC nominal |
| Output Power: | 3W, 125mA |
| Stability: | ±2% |
| Indication: | Power ON LED |
| Isolation: | 2500V for 1 min |
| Terminals: | Screw Clamp, 0-14 to 4.0 sq.mm |
| Dimensions: |
IP40 grey polymide enclosure, 19 x 72 x 72 mm |
| Installation: | TS32 and TS35 DIN Rail |
| Connections: |
Line and Neutral connections to the top of the unit, positive and 2 negative output connections on the bottom. |
| Protection: | Short Circuit Protected |
| Environment: | 0-55°C, 20 to 85% RH |
