Description

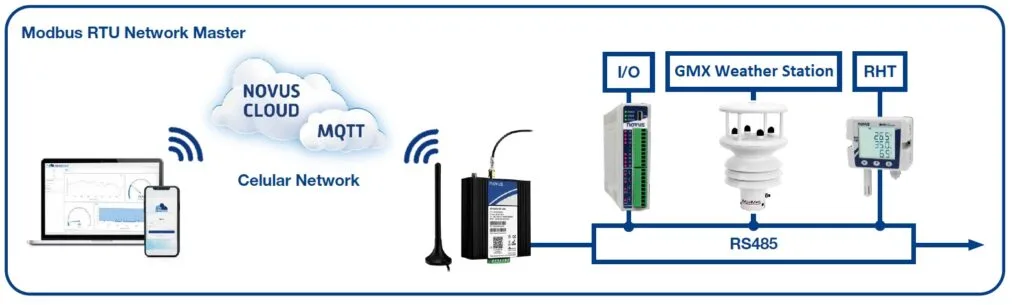

AirGate 4G Lite is an excellent cost-effective option in the AirGate series of Gateways. Designed without Wi-Fi and just a single RJ45 Ethernet port, it is ideal as the Modbus Master device on a Modbus RTU network. The AirGate 4G Lite is able to collect all the variables across a site and send the data via a secure MQTT protocol. The AirGate 4G Lite is perfect as a low cost IoT platform gateway.
Specifications
Feature | AirGate 4G |
---|---|
Cellular Interface | 4G LTE: LTE FDD, LTE TDD 3G UMTS: DC-HSDPA, HSUPA, WCDMA 2G GSM: EDGE, GPRS 2 x SMA female antenna connector 2 x SIM (3.0 V and 1.8 V) |
Wi-Fi Interface | Delete |
Ethernet Interface | Standards: IEEE 802.3, IEEE 802.3u 1 x 10/100 Mbps port, RJ45 connector 1.5KV magnetic isolation protection |
Serial Interface | 1 x RS232 (3 pin): TX, RX, GND 1 x RS485 (2 pin): A, B Baud Rate: 300 bps to 115.200 bps 15 KV ESD protection |
Digital Input and Digital Output | Delete |
LEDs | SYS LED: Operation NET LED: Mobile network USR LED: SIM Card 1/2 3 RSSI LEDs: Strength of the cellular signal |
Software | Network protocols: DHCP, ICMP, PPPOE, HTTP, HTTPS, DNS, VRRP, NTP, MQTT, FTP, TCP, Modbus RTU master, Modbus TCP client VPN: IPSec, GRE, OpenVPN, DMVPN Policy: RIPv1/RIPv2/OSPF/BGP (optional) Firewall & Filter: Port forwarding, DMZ, anti-DoS, ACL Serial Port: TCP, UDP Management: Web Interface |
Alerts | SMS and e-mail |
Power Supply | Input voltage range: 9 to 48 VDC |
Power Consumption | Idle: 50mA @ 12 V Data Connection: 200mA (peak) @ 12 V |
Dimension | 82.4 x 93.3 x 28.8mm (excluding antenna) |
Mounting | DIN Rail Mounting |
Environmental | Operation temperature: -40 to 75°C (-40 to 187°F) Operation humidity: 5 to 95 % non-condensing |
Housing Metal | 200g |
Protection | IP30 |
Certification | CE, Anatel (13384-23-12560), RoHS, EN50155 Vibration |
