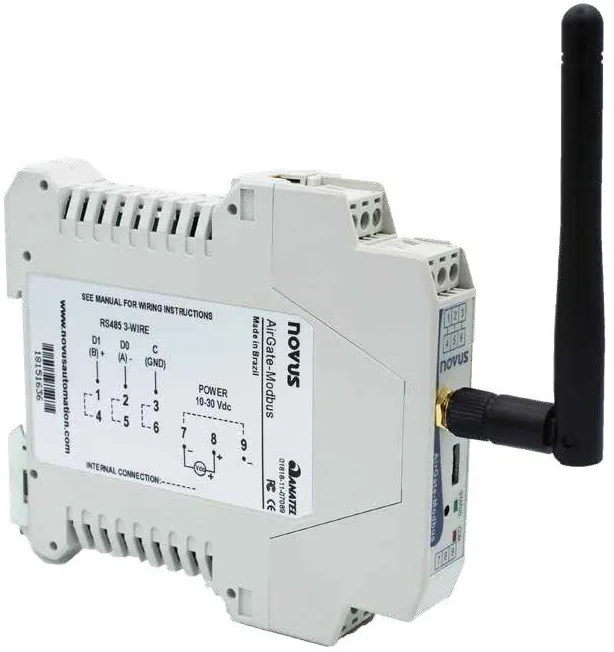

AirGate Modbus (Gateway RS485/Wireless), 10-35vDC
£216.69

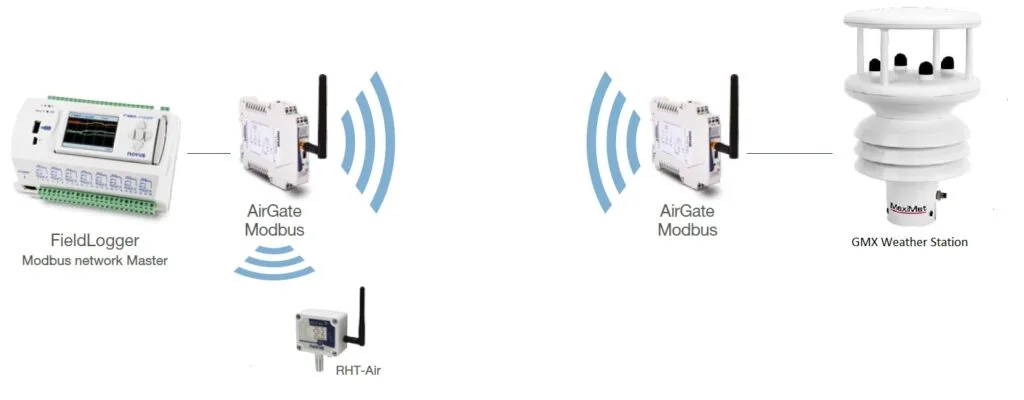

The AirGate Modbus gateway facilitates the creation of wireless sensor networks by extending Modbus RS485 networks, offering flexibility and scalability within facilities through its long-range wireless communication of up to 3200 feet; operating independently of IT infrastructure via the NOVUS Air protocol (802.15.4), it ensures secure data traffic with 128-bit encryption and utilises low-interference frequency bands for stable, reliable communication, while its easy installation, configuration, and diagnostics make it an ideal solution for field commissioning.
| Communication Interfaces | Micro-USB Type-B, RS485 and IEEE802.15.4 |
| Protocols | Modbus RTU and NOVUS-Air |
| Network Topology | Point-to-point, star and tree |
| Wireless Features | ISM 2.4 GHz, DSSS, OQPSK, 15 channels, Tx Power 20dBm, Sensitivity -96dBm, Line-of-Sight Range 1000m (3200 ft) |
| Security Features | AES-CBC-128 Encryption |
| Operation Mode | RS485 (Master), USB, Multi-Master, RS485 (Slave) |
| Power Supply | 10-30vDC |
| Programmable Functions | Operation mode and Communication Settings |
| Configuration | Yes, via USB with configuration software DigiConfig |
| Housing | PA66 |
| Dimensions | 99.5 x 114 x 17.5mm + Antenna 105mm |
| Operating Conditions | Temperature -10 to 70°C (14 to 158°F) / Humidity 80%RH up to 30°C (86°F) |
| Protection Rating | IP20 |
| Electric Protection | Reverse Polarity |
| Certifications | CE, FCC, ANATEL (01818-11-07089) |
