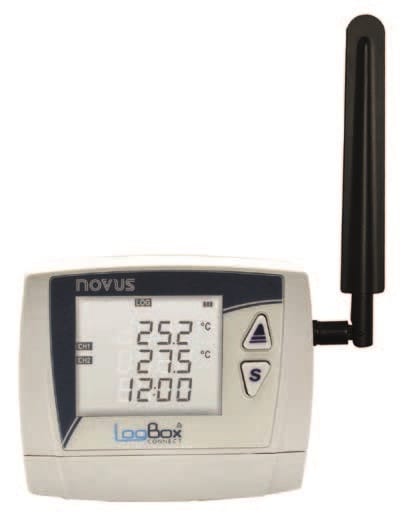

LogBox Connect LTE Data Logger. 2 Universal analogue, one digital input, plus single NPN output. Thermocouples (Type J, K, T, N, E, R, S or B) PT100, 0-50mV, 0-5V, 0-10V, 0-20mA, 4-20mA, plus Internal sensors for Internal Temperature, Battery Voltage and External Power Supply Voltage. Internal Memory 140,000 Readings with 15 bit resolution and 1 sec to 12 hours logging interval. 10 alarms available(Can activate digital output, Send SMS and MQTT Publication). USB and Mobile Comms (2G, LTE Cat M1, LTE NB1/2, SMS). NXperience software and Novus Cloud Account). Power supply: 10-30vDC, plus Built-in Rechargeable Lithium Battery Backup (up to 80 hours). Dimensions: 120 x 100 x 40mm, IP40 housing with 3 line display. Operating Temperature -20 to +60°C (0 to 45°C for internal battery).
£229.13
| Characteristics | LogBox LTE |
| Input Signal | 1 Digital Input, 2 Analog Inputs |
| Type of Analog Signal | Thermocouples J,K,T,N,E,R,S,B, PT100, 0-50mV, 0-5V, 0-10V, 0- 20mA, 4-20mA |
| Function of Digital Input | Counts Pulses, Records Events or Starts Logger |
| Digital Output | 1 NPN Output (Alarm) |
| Internal Sensors | Internal Temperature, Battery Voltage and External Power Supply |
| Display | 3 lines with 4½ digits |
| Resolution | 15 bits |
| Memory Capability | 140,000 Records (Total) |
| Record Interval | 1 sec to 12h |
| Variable Record | Instantaneous or Average |
| Acquisition Trigger | Date/Time, Alarm, Start Button, Digital Input, Software Command or SMS |
| Alarms | Up to 10 Alarms (Can activate Digital Output, Send SMS and MQTT Publication) |
| Internal Buzzer | Yes |
| Communication Interface | USB, Mobile Comms (2G, LTE Cat M1, LTE NB1/2, SMS) |
| Communication Protocol | MQTT with TLS 1.2 and NTP |
| MQTT Brokers | AWS, Azure, Goggle Cloud, Novus Cloud and Generic |
| ConfigurationSoftware | NXperience (USB or remotely via Novus Cloud) |
| Power Supply | 10-30vDC and/or Internal Rechargeable Battery |
| Battery Autonomy | Up to 80 Hours Battery Back up |
| Operation Temperature | With batteries: 0 to 45°C, With power supply: -20 a 60°C |
| Enclosure Protection | IP40 |
| Dimensions | 120 x 100 x 40 mm |
