Description

The LogBox-AA is a Dual Channel Data Logger with two Analogue Inputs. The Analogue channels accepts 0-20mA, 4-20mA, 0-10V, 0-50mV, Thermocouple or PT100 inputs with 14 bit resolution. Thermocouples can be Types J, K, T, E, N, R, S or B. The logger has immediate, programmed time, date or via start button launch options with an internal memory for up to 64,000 readings with options to stop when full, or over-writing the oldest data. Logging can also be set to run at specific times of the day, with set start and stop times.

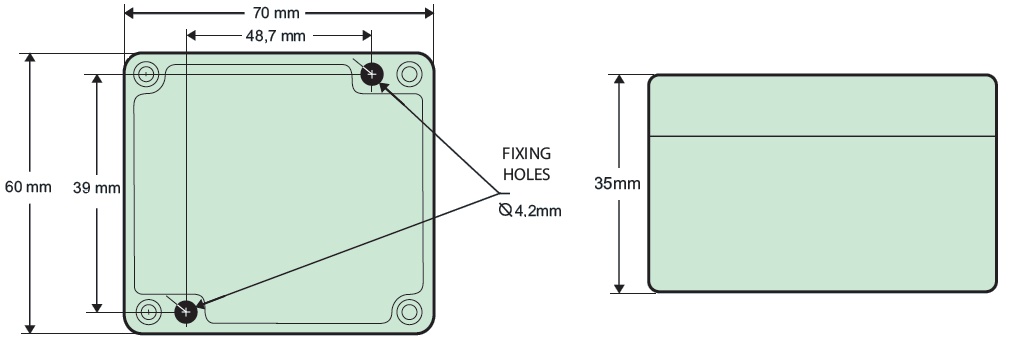

Dimensions
