Description

The LogBox-DA is a Dual Channel Data Logger with one Digital Input and one Analogue Input. The Digital channel can be used for NPN, PNP at up to 4KHz or a Dry Contact for up to 20Hz. The Analogue channel accepts 0-20mA, 4-20mA 0-10V or 0-50mV inputs with 13 bit resolution. The logger has immediate, programmed time, date or via start button launch options with an internal memory for up to 64,000 readings with options to stop when full, or over-writing the oldest data. Logging can also be set to run at specific times of the day, with set start and stop times.

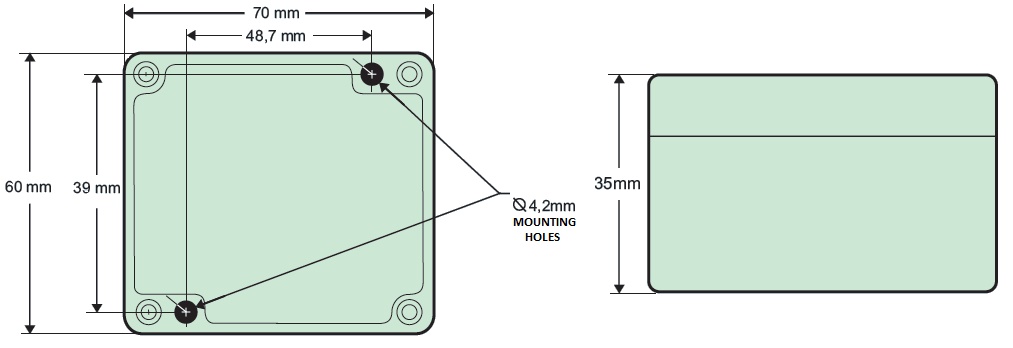

Dimensions
