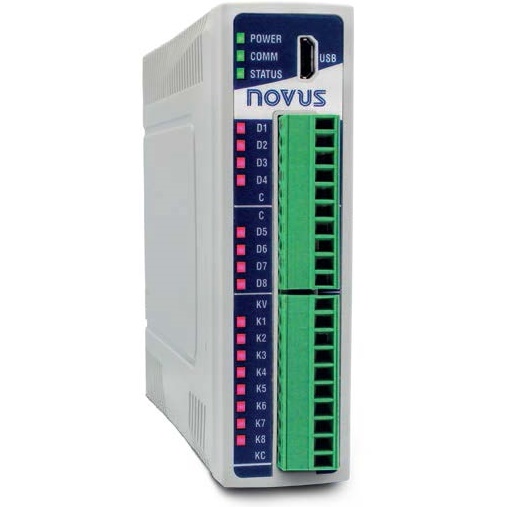

The DigiRail Connect DMIX Model, Part Ref 8811612420, Features 8 Digital Inputs and 8 Transistor Digital Outputs. Configuration of the DigiRail Connect module can be performed using the NXperience configuration software, which allows you to define the functions and mode of operation of the input and output channels and the communication ports. In addition, NXperience allows you to force values into the analogue and digital inputs and outputs and perform analysis of information about the Ethernet interface and the device. Specially designed for harsh environments, DigiRail Connect complies with the main EMC and EMI standards, providing robustness and reliability for industrial applications.
Features
- Digital Inputs (Dry Contact, NPN, PNP)
- Eight Digital Outputs (Transistor Outputs)
- Ethernet Modbus TCP
- RS485 Modbus RTU
- USB Configuration
- DIN Rail Mountable
- Robust and Reliable for Industry
Specifications
| Input Channels: | DMIX 8811612420 Model: | 8 Digitals |
| Digital Input: | Logic Levels: | “0”: <0.5V, “1”: >3V |
| Input Impedance: | 270kΩ | |
| Max Voltage: | 30vDC @ 0.15mA | |
| Maximum Frequency (Square Wave): | Dry Contact: 10Hz; PNP/NPN: 250Hz | |
| Minimum Pulse Duration: | Dry Contact: 50ms; PNP/NPN: 4ms. | |
| Output Channels: | DMIX 8811612420 Model: | 8 Digitals |
| Transistor Digital Output: | Transistor Outputs (Sourcing). 6-30vDC @ 500mA Max. | |
| Communications Interface: | USB, RS485 and Ethernet 10/100Mb/s, IEEE Standard 802.3u | |
| Configurator Software: | NXperience (via USB port) | |
| Power Supply: | 10-36vDC @ 20mA Typical (5W Max) | |
| Housing: | ABS and Polycarbonate, IP20. | |
| Dimensions: | 100 x 30 x 110mm | |
| Operating Conditions: | -20 to +60°C, 5-95%RH Non-condensing | |
DigiRail Connect Wiring Diagrams
