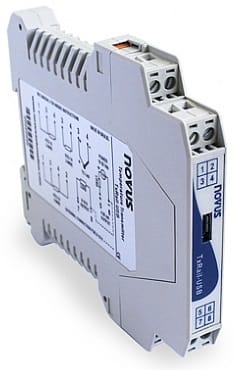

TxRail-USB DIN Rail mounted temperature transmitter with programmable 4-20mA and 0-10vDC Output. Suitable for PT100, Thermocouple (Type J, K, T, E, N, R or S), NTC and 0-50mV with configurable measurement ranges. Transmitter generates a 2-wire loop powered 4-20mA output or a 0-10V output. USB micro-B port allows direct PC connection for configuration. Power Supply 12 to 35vDC. Can be mounted vertically or horizontally on a DIN Rail. Dimensions: 99.5 x 114 x 12.5mm. Operating temperature: -40 to 85°C.

£45.35

Need help finding the right product?

Downloads

Description

TxRail-USB is a fully configurable DIN rail mount temperature transmitter with a USB connection. It allows selection and configuration of input type, measurement range, output type and adjustments for calibration. Its output can be set to either loop powered 4-20 mA or 0-10 Vdc. Highly accurate and user-friendly, the TxRail-USB performs well from simple to sophisticated measurement applications.

Features

  • 2, 3 or 4 Wire PT100/PT1000 connection
  • Internal Cold Junction Connection
  • Operating Temperature: -40 to 85°C
  • Free Windows Configuration Software
  • USB micro-B port allows direct PC connection for configuration
  • Dimensions: 99.5 x 114 x 12.5mm



Input Options:

Sensor Type Max Range Min Range
Voltage 0 to 50mV 5mV
Thermocouple K -150 to +1370°C 100°C
Thermocouple J -100 to 760°C 100°C
Thermocouple R -50 to 1760°C 400°C
Thermocouple S -50 to 1760°C 400°C
Thermocouple T -160 to 400°C 100°C
Thermocouple N -270 to 1300°C 100°C
Thermocouple E -90 to 720°C 100°C
Thermocouple B 500 to 1820°C 400°C
PT100 -200 to +650°C 40°C
PT1000 -200 to 650°C 40°C
NTC -30 to +120°C 40°C



Output Options:

Current Output: 4-20mA or 20-4mA, Resolutions 2µA. 2 Wire: linearised according to the selected input.

Voltage Output: 0-10V ot 10-0V, Resolution 0.0025V. linearised according to the selected input.
