RHT-AIR Wireless Temperature and Relative Humidity Transmitter. Temperature Range -40 to +100°C, Relative Humidity Range 0 to 100%RH. Power Supply Internal battery or 12 to 32vDC. Micro USB port for configuration via DigiConfig software. Operating Range, -10 to +70°C and 0 to 95%RH.
£165.68

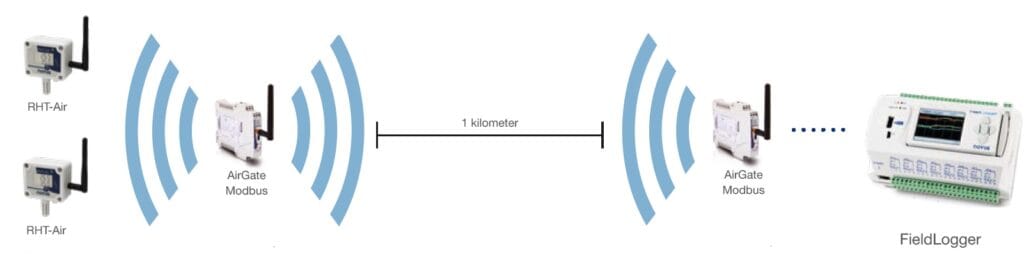

The RHT-AIR is a fully wireless solution for measuring temperature and humidity over long distances, allowing the configuration and reading of the parameters through the wireless network up to 1 km, bringing practicality and efficiency to the application. Units can be battery powered, or via 12-30vDC for continuous operation. Data can be collected by a central AirGate Modbus unit and relayed to a Fieldlogger or AirGate unit for connection to a remote Web server.
| Measurement Range | Temperature: -40 to 100°C (-40 to 212F) | Humidity: 0 to 100%RH |
| Measurement Accuracy | Temperature: ±0.4°C @ 25°C | ±3%RH @ 25°C (20 – 80%RH) |
| Measurement Resolution | Temperature: 0.1°C (14 bits – 16383 levels) | Humidity: 0.1% (12 bits – 4095 levels) |
| Interval between Updates | Configurable between 15 seconds and 10 minutes (600 seconds) | |
| Response Time | Temperature: 30 sec (air speed 1m/s) | Humidity: 8 sec (air speed 1m/s) |
| Display | LCD with 2 indications | |
| Advanced Functions | Battery Level, Dew Point Indication and Retransmission | |
| Communication Interface | NOVUS Air (IEEE 802.15.4) | |
| Power Supply | 12-30vDC or 3.6V Lithium Battery (OmniCel, ER14250HD model) | |
| Estimated Battery Life | Typical 2 years – 10 minutes update interval @ 25°C | |
| Dimensions | Box: 70 x 60 x 35mm Probe size: 39mm Antenna size: 105mm |
|
| Operating Conditions | -10°C to 70°C and 0 to 95%RH | |
| Enclosure | Material Polycarbonate IP40 | |
| USB Configuration | Internal Micro-B Type | |
| Configuration Software | DigiConfig | |
| Certifications | CE, ANATEL (0172-13-7089) & FCC | |
| Electromagnetic Compatibility | EMC: EN61326-1:2006 CISPR11/EN55011 EN61000-4-2, EN61000-4-3, EN 61000-4-4, EN 61000-4-6, EN61000-4-8 |
|
RHT-Air has an IEEE 802.15.4 wireless communication to connect to AirGate Modbus that has its firmware updated to a version more recent than V1.23. The first RHT-Air configuration must be performed via the USB interface through the DigiConfig software. In it, the necessary parameters for communication with AirGate network should be set. After the first time it is configured and matched with a AirGate-Modbus, RHT-Air will operate as a Modbus RTU slave. From this moment on, all its resources can be accessed by reading its registers anywhere in any Modbus RTU network.
