Description

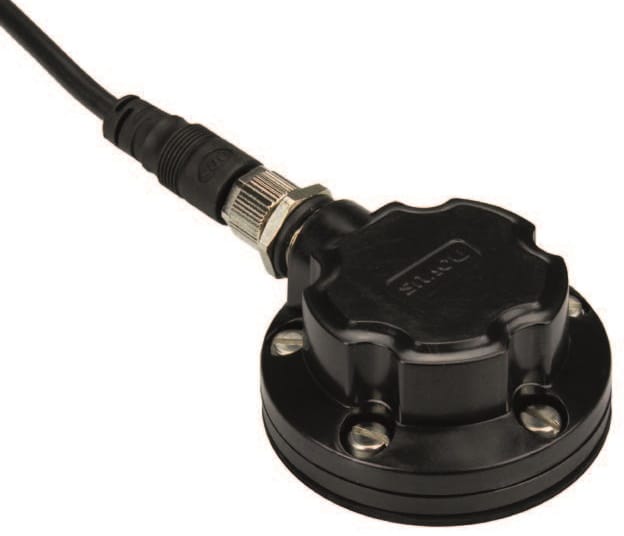

The TL400-V, Part Ref 8802100120, is a non intrusive level and volume sensor with a 0.5-4.5V output. Ideal for detecting liquids, grains, fluids and bulk solids in static and moving applications. It may be used for level measuring of tanks, reservoirs, wells, perforations, rivers and other compartments. It uses a harmless pulsed laser beam it performs multiple measurements per second while an advanced algorithm calculates not only the exact level but also converts it to volume in liters or other desired units. The linearisation allows for up to 20 adjustment points to reflect changes in any irregular tank design.
Features
- Easy non-intrusive installation
- Configuration via Bluetooth with App
- Digital filters based on Machine Learning
- Allows linearisation for any irregular tank geometry
- Converts level into volume (liters, m³, gallons, etc.)
Specifications
| TL400-V | |
| Range | Up To 4 Meters |
| Accuracy | Up to 2mm |
| Output Signal | 0.5-4.5V |
| Connector Type | 3-pin SuperSeal Connector and 150mm cable |
| Tank Geometry | In addition to standard formats, it allows up to 20 linearisation points |
| Operating Temperature | -20 to 80°C |
| Communications Interface | Bluetooth |
| Configuration Software | SigNow for Android, iOS and Windows |
| Power Supply | 8-33vDC @ 15mA |
| Electrical Protection | Reverse Polarity Protection and Current Limitation |
| Housing | Polycarbonate with NBR Gasket |
| Dimensions | 66mm Diameter, 31mm Height |
| Mounting Pattern | SAE 5 Bolt Hole |
| Protection Level | IP68 |
| Certification | CE. UKCA and Laser Class 1 |
| Warranty | 3 Years |
