Description

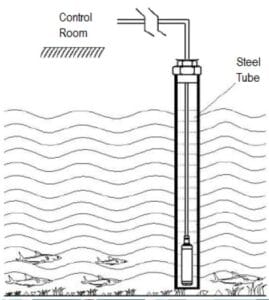

The WL420 water level transmitter, part number 8801804010, is a reliable solution for water level monitoring with a 4.0m measurement range and 10m cable. This model is ideal for applications involving medium-sized storage tanks or river level monitoring. For installation in open water, it is best to locate the WL420 water level sensor inside a steel tube with an internal diameter of about 50cm. This will reduce the effect of the current and other motion in the water for the sensor. several 5mm holes should be drilled into the tubing to ensure the level is the same as the river. See diagram on the right.
Application
- Medium-Sized Storage Tanks:
- Monitoring the level of water or other liquids in medium-sized industrial storage tanks.
- Monitoring levels in some types of ballast tanks.
- River Level Monitoring (Small Rivers):
- Monitoring water levels in smaller rivers for flood prediction.
- Gathering hydrological data for environmental studies.
Specification
Part Number | 8801804010 |
Pressure Range | 0-4.0mWC |
Sensor | Piezoresistive Diaphragm |
Sensor Accuracy | 0.1% F.S. |
Analogue Output | 4-20mA |
Accuracy | 0.5% F.S. @25°C |
Cable | 10m Polyurethane (PUR) with Ventilation Tube |
Temperature Compensation | 0 ~ 10mWC: 0 to ~60°C |
Response Time | ≤ 1ms (Up to 90% F.S.) |
Long Term Stability | ±0.2% F.S./year |
Operating Temperature | 0 to 60°C (If measuring range < 4mWC) |
Storage Temperature | -40 to 125 °C |
Power Supply | Loop-Powered 4-20mA (12~36vDC) |
Housing Material |
|
Dimensions | Height: 105mm, Diameter: 26.5mm |
Level of Protection | IP68 |
Overpressure Limit | <=6mWC: 3x F.S. |
Electrical Protection | Reverse Polarity and Current Limiter |
Certification | CE, UKCA, RoHS |
Warranty | 1 Year |
