Features9202 Pressure Connection

  • 11 different pressure measurement units, including mBar, Bar, PSI, kPa
  • Small barbed stainless steel connectors suitable for 4mm ID tubing
  • Record function for Max, Min and Average measurements
  • Over pressure protection to twice meters range
  • Automatic power off function.
  • Replaceable AAA batteries
  • Units supplied with batteries, user guide and 500m x 4mm tubing.
  • Protective silicone boot with foot stand and magnetic mounting available
  • 12 month manufacturer guarantee

Applications

  • Flue draught measurement
  • Gas pressure in heating appliances
  • Air conditioning ducts
  • Monitoring of filters differential pressure
  • Velocity measurement with a pitot tube

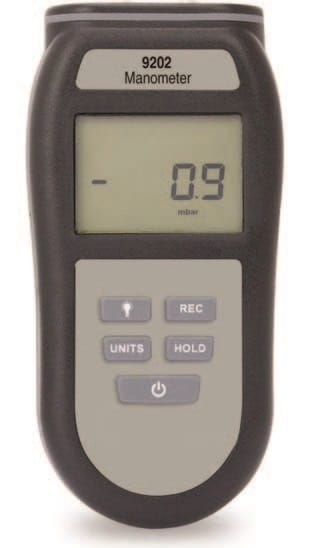

The 9202 manometer covers a differential pressure range of ±2 PSI (±137.8 mBar) with a resolution of 0.01 PSI (0.1 mBar) and ±0.3%FS accuracy. The manometer features over pressure protection to 4 PSI. The meter is easy to use and ideal for measuring non-corrosive gauge or differential air pressure in a wide variety of different industries.

Each pressure meter features a custom, LCD display with P1, P2, diff, hold, open circuit, low battery indication and a user selectable backlight. The unit incorporates an auto-power off facility that automatically turns the instrument off after approximately ten minutes, maximising battery life.

Specifications

Displayed Units: Range Resolution
PSI ±2 0.01
mBar ±137.8 0.1
Bar ±0.137 0.001
KPa ±13.79 0.01
inHg ±0.407 0.001
mmHg ±103.4 0.1
ozin² ±32.00 0.01
inH2O ±55.40 0.01
ftH2O ±4.612 0.001
cmH2O ±140.6 0.1
Kgcm² ±0.140 0.001
Accuracy: ±0.3%FS @ 25°C
Repeatibility: ±0.2% (Max. 0.5% FS)
Battery: 3 x 1.5V AAA Batteries
Battery Life: 100 Hours
Display: Custom LCD
Dimensions: 32 x 71 x 141mm
Weight: 220g

Each unit is housed in a durable, ABS case that has an integrated rubber seal to ensure complete water tightness and help reduce the possibility of damage in harsh environments. Supplied complete with a battery, operation manual and two 500mm long connection hoses. A protective silicone boot with foot stand and magnetic mounting and a stainless steel wall bracket are available on request.
