Description

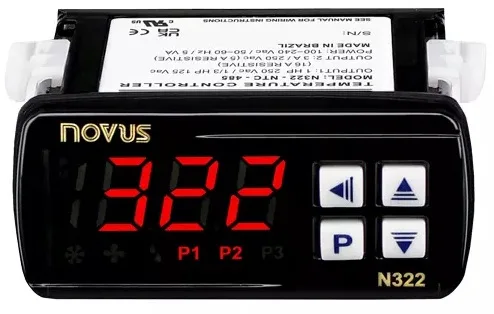

The N322 Electronic Thermostats are designed for cooling and heating control using a SPDT Relay (Max 250vAC @ 16A) to activate or deactivate a compressor or electronic heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for control or alarm. The N322 can accept NTC Thermistor temperature sensors.
Specifications
- Sensor Input: NTC Thermistor (-50 to 150°C)
- IP65 enclosure frontal protection when installed. Behind panel, IP42.
- Output: 1 SPDT Relay for 250vAC @ 16A, 1 x SPST Relay for 250vAC @ 3A.
- Resolution: 0.1°C from -19,9 to 99,9°C, 1°C elsewhere
- Accuracy: 0.6°C from -19,9 to 99,9°C, 1°C elsewhere
- Adjustable hysteresis
- Working temperature: 0 to 40°C @ 20 to 85%RH.
- Power supply: 24vDC
- Dimensions: 75 x 33 x 75mm (Width x Height x Depth)
- Panel Cut Out: 70 x 29mm
- Weight: 100g
