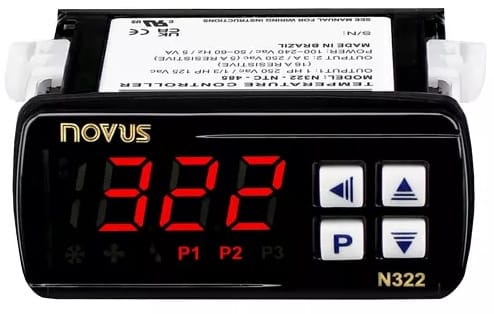

N322 Electronic Thermostat for Cooling/Heating Control with Single SPDT Relay Output, Max 250vAC @ 16A. Direct Switching of compressor or electrical heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for additional control or alarm. Accepts NTC Thermistor Input. Measurement Range: -50 to +120°C (-58 to 248F), Accuracy 0.6°C between -19.9 to 99.9°C, 1°C elsewhere. Power Supply: 100-240vAC @ 5 Watts. Dimensions: 75 x 33 x 75mm. Panel cut-out: 70 x 29mm. Operation Temperature: 0 to 40°C. Polycarbonate Housing: IP42 | Front: IP65. Certifications: CE, UKCA, UL.
£40.31
The N322 Electronic Thermostats are designed for cooling and heating control using a SPDT Relay (Max 250vAC @ 16A) to activate or deactivate a compressor or electronic heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for control or alarm. The N322 can accept NTC Thermistor temperature sensors.
