Description

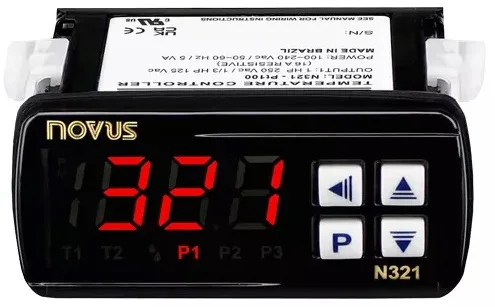

The N321 Electronic Thermostats include a single control relays and are designed to measure, indicate and control temperature in many different systems by controlling a single relay that allows a compressor, or electronic heater, to bring the temperature back within the set point temperature limits (SP1, setpoint 1) set on the display. The N321 accepts 2 or 3 Wire PT100 temperature sensors.

Users can program the control action according to the application, direct action (refrigeration) or reverse action (heating). A single SPDT Relay (Max 250 @ 16A) allows for power a connected compressor, or electric heater, with ON/OFF control.

Specifications

• Sensor Input: PT100 (-50 to 300°C)
• IP65 enclosure frontal protection when installed. Behind panel, IP42.
• Output: 1 SPDT Relay for 250vAC @ 16A
• Resolution: 0.1°C from -19,9 to 99,9°C, 1°C elsewhere
• Accuracy: 0.2%FS, ±2°C/°F
• Adjustable hysteresis
• Working temperature: 0 to 40°C @ 20 to 85%RH.
• Power supply: 24vDC
• Dimensions: 75 x 33 x 75mm (Width x Height x Depth)
• Panel Cut Out: 70 x 29mm
• Weight: 100g
