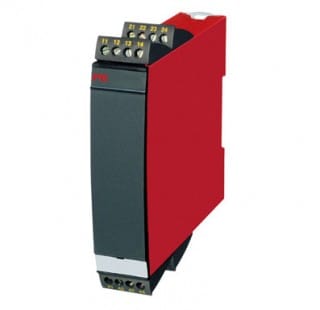

6185 Loop Powered Isolator

6185 Loop Powered Isolator

The 6185 is a loop powered isolator suitable for the galvanic separation of analogue current signals with a straight 1:1 conversion of 0-20mA inputs. The 6185 is available in single, dual and four channel versions with a slimline 3185 series available in single and dual channel versions, all with no separate power supply and a low voltage drop of less than 1.8vDC.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

PR 6185 ATEX Loop Powered Isolator

Description

Application

  • Galvanic separation of analogue current signals.
  • Elimination of ground loops and measurement of floating signals.
  • A competitive choice in terms of both price and technology for galvanic isolation of current signals to SCADA systems or PLC equipment.
  • Especially useful in applications necessitating an unproblematic transmission of current signals according to NAMUR (sensor error detection).

Features

  • Single, dual and four channel galvanic isolation
  • Slimline channel width of less than 6mm (3185 Series)
  • No separate supply necessary
  • Low response time
  • High noise suppression

Options

Type Channels
6185



 A: Single Channel
B: Dual Channel
D: Four Channel



Product

Ref

Price

Product Description

6185A

£157.20

6185 Single Channel Loop Powered Isolator. Galvanic isolation and 1:1 conversion of current signals within the range 0-20 mA, Response time: less than 4 ms, Accuracy 0.1% of span. Power Supply: Loop powered via the input loop, voltage drop less than 1.8V.
MORE INFO
Add to basket

6185B

£252.14

6185 Dual Channel Loop Powered Isolator. Galvanic isolation and 1:1 conversion of current signals within the range 0-20 mA, Response time: less than 4 ms, Accuracy 0.1% of span. Power Supply: Loop powered via the input loop, voltage drop less than 1.8V.
MORE INFO
Add to basket

6185D

£324.95

6185 Four Channel Loop Powered Isolator. Galvanic isolation and 1:1 conversion of current signals within the range 0-20 mA, Response time: less than 4 ms, Accuracy 0.1% of span. Power Supply: Loop powered via the input loop, voltage drop less than 1.8V.
MORE INFO
Add to basket
