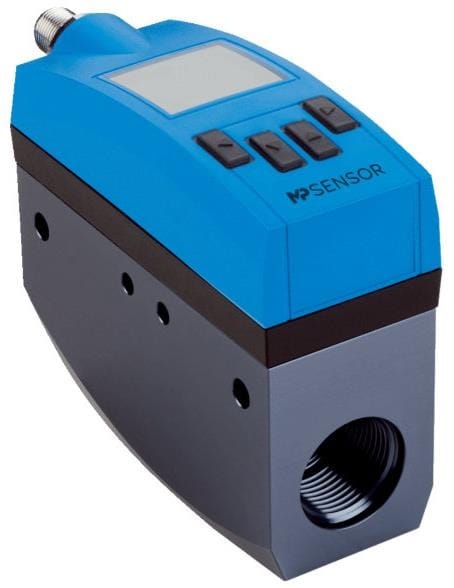

F.Core Inline Flow Sensor for compressed air and Nitrogen with OLED display. Outputs 4-20mA, digital and IO Link. ½″ BSP Female Ports. Accuracy ±3% of reading. Power Supply: 17-30vDC. Operating pressure 16 Bar Max.
£729.65
The DN15 F.Core Flow Sensor uses a combination of Calorimetric (Flow and Temperature) and Piezoresistive (Pressure) measurement principles. With a standard measurement accuracy of ±3% of the measured value, it is perfectly suited for a wide range of industrial applications.
| Accuracy: | ±3% of measured value |
| Medias: | Compressed air, Helium, Argon, Nitrogen, or Carbon Dioxide. |
| Operating Pressure: | 16 Bar maximum |
| Power Supply: | 17-30vDC (12W @ 24vDC) |
| Wetted Parts: | 1.4305, PA6, Viton®, Aluminium |
| Display: | OLED-Display 128×128 px, rotary (4x 90°) |
| Analogue Output: | 4-20mA |
| Digital Output: | PNP, NPN, push-pull → switchable |
| IO Link: | IO-Link v1.1 (COM3 /230K4 baud) |
