Description

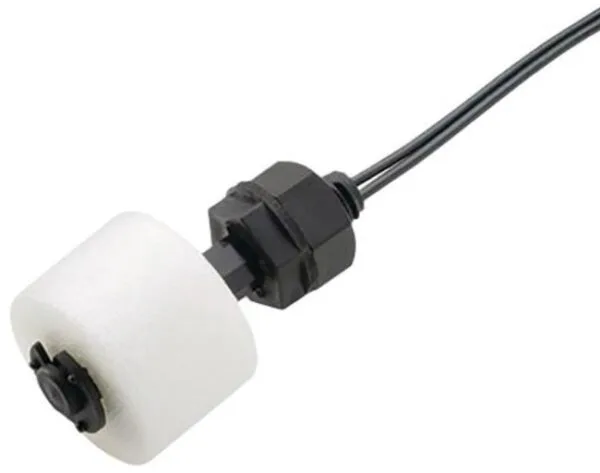

The 59630-1-T-02-A is a reed level sensor featuring an integrated float actuator and an M8 x 1.25mm pitch thread. It offers versatile contact options, including normally open change-over contacts. This sensor can switch up to 140vAC/200vDC at 10VA, making it well-suited for applications such as liquid and air conditioning condensate monitoring, as well as industrial process control.
Features
- Float sensor with integral float magnet attached
- Sensor operates when float rises from end stop position
- Normally Open
- No standby power required
- Hermetically sealed
- Simple installation with M8 thread and nut.
Drawing
Specifications
| Mounting: | Top Entry with M8 x 1.25 thread |
| Max. Switching Volts: | 200vDC |
| Maximum Power: | 10 Watts |
| Operating Temperature: | -40 to +105°C |
