Description

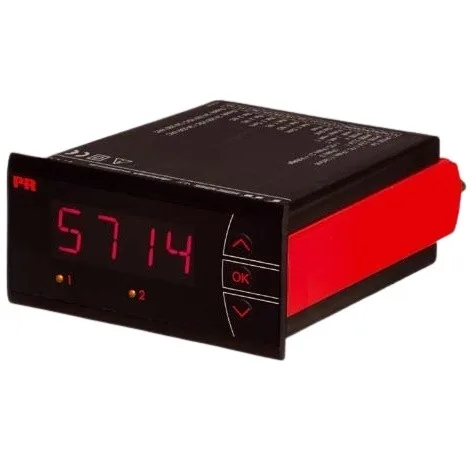

The PR 5714C is a Programmable Universal Indicator Display from PR Electronics with a single (0)4-20mA output. The 5714C is a reliable and flexible solution for visualising and transmitting process data in a wide range of industrial applications. Its ability to accept various input signals and provide a standardised output signal makes it a valuable tool for process monitoring, control, and automation. The 4-20mA output can be transmitter over a long distance, or connected to a data logger for monitoring.

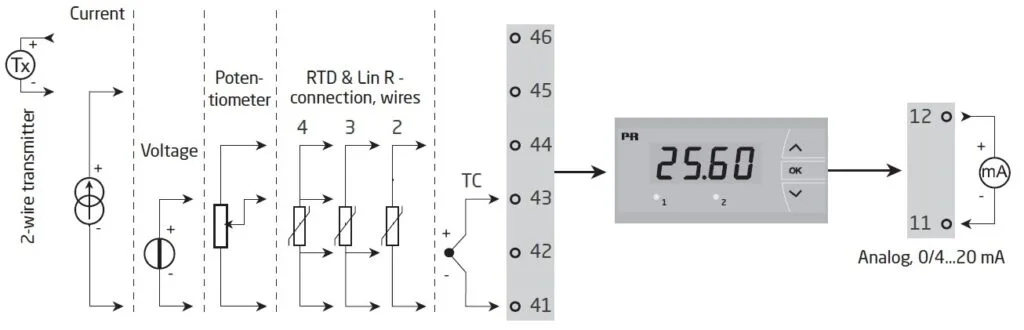

5714C Connections

Power Supply

Applications

• Display for digital readout of current, voltage, temperature or 3-wire potentiometer signals.
• Process control with 4-20mA analogue output.
• For local readout in extremely wet atmospheres with a specially designed splash-proof cover.

Features

• 4-digit, 14 segment LED indicator
• Universal Input for mA, V, RTD, Thermocouple or potentiometer
• Analogue Output
• Universal Supply Voltage
• Front Key Programmable with Eight Languages Available

Options
