5714B

5714B

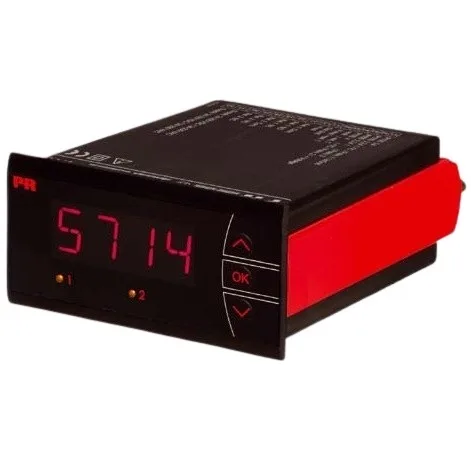

PR 5714B 4 Digit Red LED display. Accepts a single 4-20mA, 0-1V, 0.2.1V, 0-10V, PT100 and Thermocouple inputs. Programmable via front keys, 2.3kVAC Galvanic isolation and 2 x Relay outputs. Universal power supply: 21.6 to 253vAC or 19.2 to 300vDC. IP65 Rated with dimensions of 48 x 96 x 120mm, requires a Cutout 44.5 x 91.5mm.

£197.00

Need help finding the right product?

CONTACT US

Downloads

Datasheet

PR5714 Universal Indicator

Description

The PR 5714B is a Programmable Universal Indicator Display from PR Electronics with two relay outputs. The 5714B is a reliable and flexible solution for visualising and two relay outputs for alarming is suitable for a wide range of industrial applications.

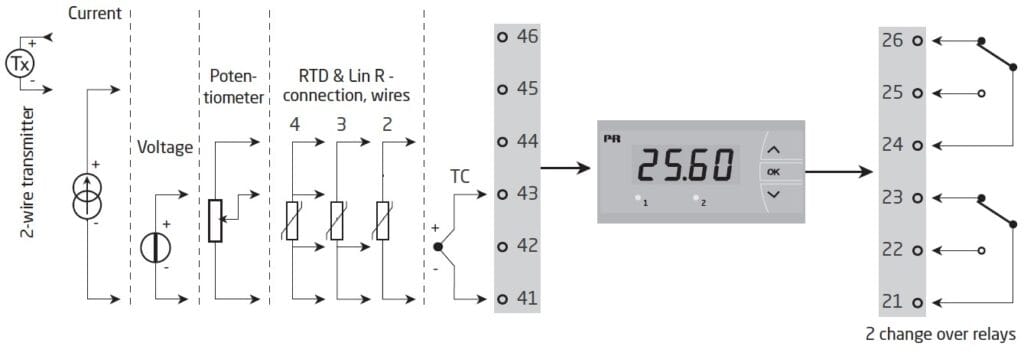

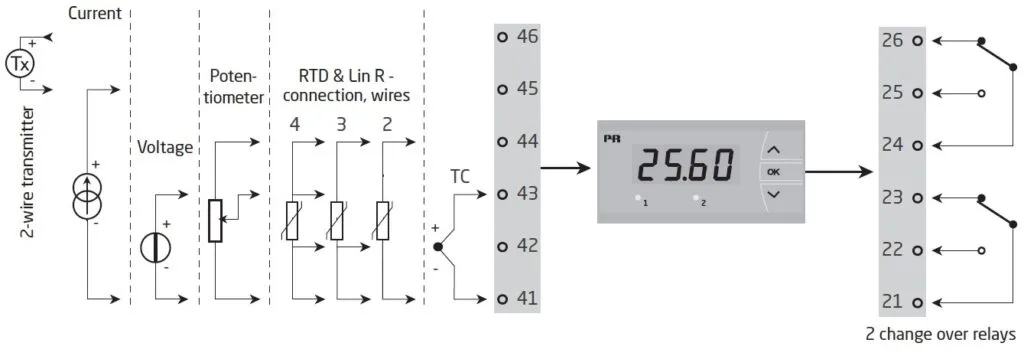

5714B Connections

Power Supply

Applications

  • Display for digital readout of current, voltage, temperature or 3-wire potentiometer signals.
  • Process control with 2 potential-free relays and/or analogue output.
  • For local readout in extremely wet atmospheres with a specially designed splash-proof cover.

Features

  • 4-digit, 14 segment LED indicator
  • Universal Input for mA, V, RTD, Thermocouple or potentiometer
  • 2 Relay Outputs
  • Universal Supply Voltage
  • Front Key Programmable with Eight Languages Available

Options

Type Version
5714 A: Standard
B: 2 Relays
C: Analogue Output
D: Analogue Output and 2 Relays.
