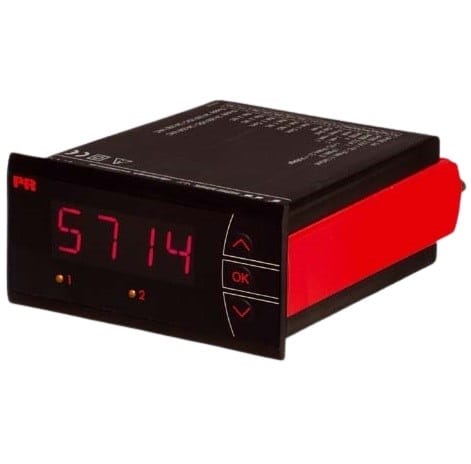

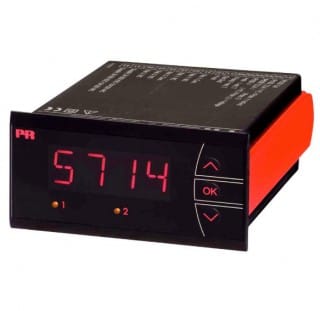

5714 Universal Indicator

LED-display, 48 x 96 mm. Universal input for V, mV, mA, thermocouples and PT100 sensors. Programmable via front keys. Galvanic isolation, 2.3 kVAC. Relay and analogue output. Universal voltage supply (24-230 V AC/DC), Protection IP65

Need help finding the right product?

Downloads

Description

Description

Applications

Display for digital readout of current, voltage, temperature or 3-wire potentiometer signals.
Process control with 2 potential-free relays and/or analogue output.
For local readout in extremely wet atmospheres with a specially designed splash-proof cover.

Features

4-digit, 14 segment LED indicator
input for mA, V, RTD, TC and potentiometer
2 relays and analogue output
Universal supply voltage
Front key programmable

Options

Type	Version
5714	A: Standard B: 2 Relays C: Analogue Output D: Analogue Output and 2 Relays.

Product

Ref

Price

Product Description

5714A

£180.00

PR 5714A 4 Digit Red LED display. Accepts a single 4-20mA, 0-1V, 0.2.1V, 0-10V, PT100 and Thermocouple inputs. Programmable via front keys, 2.3kVAC Galvanic isolation. Universal power supply: 21.6 to 253vAC or 19.2 to 300vDC. IP65 Rated with dimensions of 48 x 96 x 120mm, requires a Cutout 44.5 x 91.5mm.

5714B

£197.00

PR 5714B 4 Digit Red LED display. Accepts a single 4-20mA, 0-1V, 0.2.1V, 0-10V, PT100 and Thermocouple inputs. Programmable via front keys, 2.3kVAC Galvanic isolation and 2 x Relay outputs. Universal power supply: 21.6 to 253vAC or 19.2 to 300vDC. IP65 Rated with dimensions of 48 x 96 x 120mm, requires a Cutout 44.5 x 91.5mm.

5714C

£238.01

PR 5714C 4 Digit Red LED display. Accepts a single 4-20mA, 0-1V, 0.2.1V, 0-10V, PT100 and Thermocouple inputs. Programmable via front keys, 2.3kVAC Galvanic isolation and Analogue 4-20mA output. Universal power supply: 21.6 to 253vAC or 19.2 to 300vDC. IP65 Rated with dimensions of 48 x 96 x 120mm, requires a Cutout 44.5 x 91.5mm.

5714D

£256.01

PR 5714D 4 Digit Red LED display. Accepts a single 4-20mA, 0-1V, 0.2.1V, 0-10V, PT100 and Thermocouple inputs. Programmable via front keys, 2.3kVAC Galvanic isolation, 2 x Relay and Analogue 4-20mA output. Universal power supply: 21.6 to 253vAC or 19.2 to 300vDC. IP65 Rated with dimensions of 48 x 96 x 120mm, requires a Cutout 44.5 x 91.5mm.

8335

£27.43

Splash-proof cover for 5714 displays, IP67.
