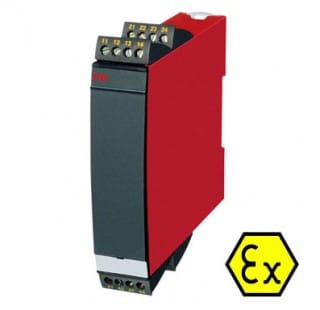

5202B 2-Channel Pulse Isolator

5202B 2-Channel Pulse Isolator

Input: NAMUR proximity switch, contact ~ Sensor/cable supervision
Intrinsically safe input [EEx ia] IIC ~ Output: Relay or optocoupler
Output for cable error indication (1channel)
115/230 V or 24 V supply

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

PR 5202B ATEX Pulse Isolator

Description

Application

  • Pulse isolator with safety barrier for the supply of NAMUR sensors installed in the hazardous area.
  • Pulse isolator with safety barrier for the detection of mechanical contacts installed in the hazardous area.
  • One input signal can be used on two separate outputs.
  • A cable error alarm can be detected on a separate output.

Features

  • 2 channels – 2 or 4 outputs
  • Dual output
  • 5-port 3.75 kVAC galvanic isolation
  • Cable error detection
  • Universal AC or DC supply

Options

Type Output
5202B



 1: Open collector NPN
2: 2 x 1 Relays
3: 2 x 2 Relays



Product

Ref

Price

Product Description

5202B1

£180.40

5202B1 2 Channel Pulse Isolator with 2 NPN Outputs. Units will accept NAMUR or mechanical contact inputs. Power supply 21.6 – 253 vAC or 19.2 – 300vDC. Units are suitable for Hazardous Area Installations, ATEX II (1) GD.
MORE INFO
Add to basket

5202B2

£180.00

5202B2 2 Channel Pulse Isolator with 2 Relay Outputs. Units will accept NAMUR or mechanical contact inputs. Power supply 21.6 – 253 vAC or 19.2 – 300vDC. Units are suitable for Hazardous Area Installations, ATEX II (1) GD.
MORE INFO
Add to basket

5202B4

£206.79

5202B4 2 Channel Pulse Isolator with 4 Relay Outputs. Units will accept NAMUR or mechanical contact inputs. Power supply 21.6 – 253 vAC or 19.2 – 300vDC. Units are suitable for Hazardous Area Installations, ATEX II (1) GD.
MORE INFO
Add to basket
