Description

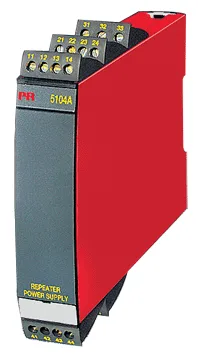

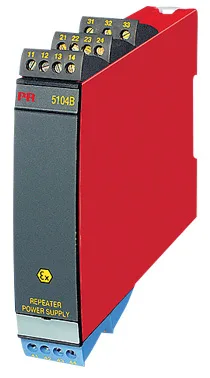

The PR 5104 is a high-performance, microprocessor-based analogue signal isolator and repeater/power supply engineered for robust industrial process control. Designed to provide 3.75kVAC galvanic isolation, it serves as a reliable ATEX-certified safety barrier for hazardous area applications (5104B variant) or as a versatile power source for 2-wire transmitters (5104A variant). With 20 factory-calibrated measurement ranges selectable via internal DIP switches, this DIN-rail mounted device supports universal AC/DC supply voltages. Its high-density, dual-channel configuration allows for up to 84 channels per metre, making it an essential, space-saving solution for complex automation systems requiring stable signal conversion and noise immunity.

Features

• Single or Dual channel version
• 3- / 5-port 3.75 kVAC galvanic isolation
• Loop supply > 17.1 V

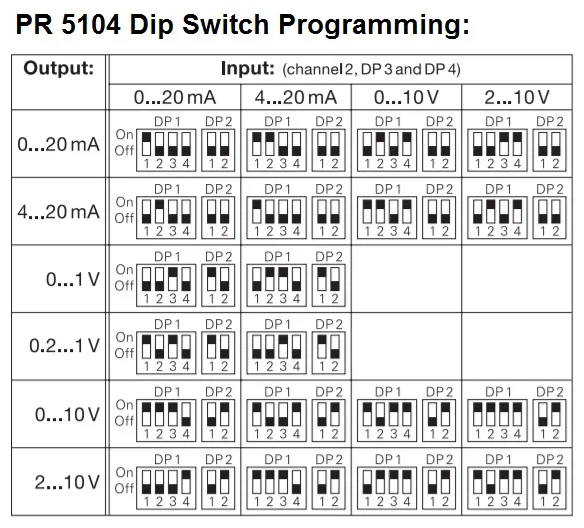

• 20 programmable measurement ranges
• Universal supply by AC or DC

Applications

• Power supply and signal isolator for 2-wire transmitters.
• Signal isolator for analogue current / voltage signals.
• ATEX versions can be used as a safety barrier for analogue current / voltage signals from a hazardous area.
• 1 : 1 or signal conversion of analogue current/voltage signals.

Technical characteristics:

• PR5104A is based on microprocessor technology for gain and offset. The analogue signal is transmitted at a response time of less than 25ms.
• Inputs, outputs, and supply are floating and galvanically separated.
• The output can be connected either as an active current / voltage transmitter or as a 2-wire transmitter.

Mounting/installation:

Mounted vertically or horizontally on a DIN rail. By way of the 2-channel version up to 84 channels per metre can be mounted.

Options:
