Description

The key benefit of the ThermoAir 20 directional design is its ability to isolate and identify the precise origin point of an air current. By utilising a portable handheld display, the sensor can be taken to the source, wherever it is. With the sensor enclosed within a protective shroud, it limits to flows from a single axis, the user can conduct systematic, high-confidence sweep tests across building envelopes, window frames, or ductwork joints. The probe can be rotated until the highest reading is shown on the display. Showing the operator definitively that the air is flowing from the direction the probe is showing, making the ThermoAir 20 Directional Anemometer an invaluable tool for root-cause analysis in diagnostic applications.

This capability is essential for effective draft and leakage control in energy conservation and building maintenance. Rather than just confirming that a “draft exists,” the directional feature allows the technician to pinpoint the exact crevice or seal failure causing the air intrusion. This translates to efficient maintenance by eliminating guesswork and ensuring repair efforts are focused on the actual source, which is especially important for maintaining the strict climate control and cleanliness required in sensitive, modern structures.

Features

  • Modular concept allows a single instrument to adapt to various different applications.
  • 3.2″ display with button operation, plus option for touchscreen display
  • MC 4.0 ThermoAir are supplied with removable rubber case in red.
  • Minimum, Maximum and Average values continuously selectable
  • Measurement rate of 2 Secs.
  • Internal logger with 1 million reading capacity in 4GB storage
  • Extramodules are available to convert the MC 4.0 display to accept MiniAir 20 Probes and differential pressure tubing.

Specifications

MC 4.0 Display UnitMC4.0 ThermoAir Handheld Display



Display: 3.2″ TFT Display
Unit of Measure:



 Flow: m/s, km/h, ft/s. mph
Volume: Flow: m³h, l/min, m³/s, cfm
Humidity: %RH
Temperature: °C, F, °K
Pressure: Pa, mBar, mm H20, PSI, VOC, CO2 and PM1: ppm
Logger: Internal 4GB memory, capacity 1 million readings
Power Supply: Lithium Polymer Battery
Battery Life: Approx 15 Hours
Case Dimensions: 168 x 68 x 38mm
IP Rating: IP67
Weight: Approx 300g
Operating Temp: 0 to 60°C
Humidity: 0-99%RH
Protective Case: Removable Red Rubber Case. Also available in Blue, Orange or Green.

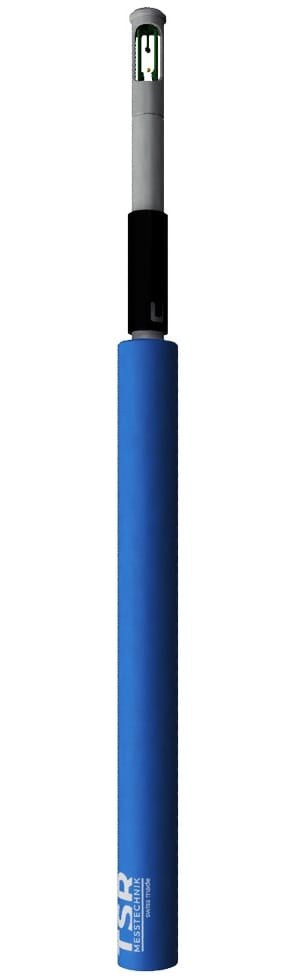

Directional Probes

Flow Measuring Range:
 0.015 to 1 m/s
or 0.015 to 5m/s
Head Size: 8mm
Shaft Diameter: 15mm
Probe Length: 300mm
Angle of Flow: ±30°
Cable Length: 1.5m (more on request)
