PR 3225 Series Universal Frequency Converter

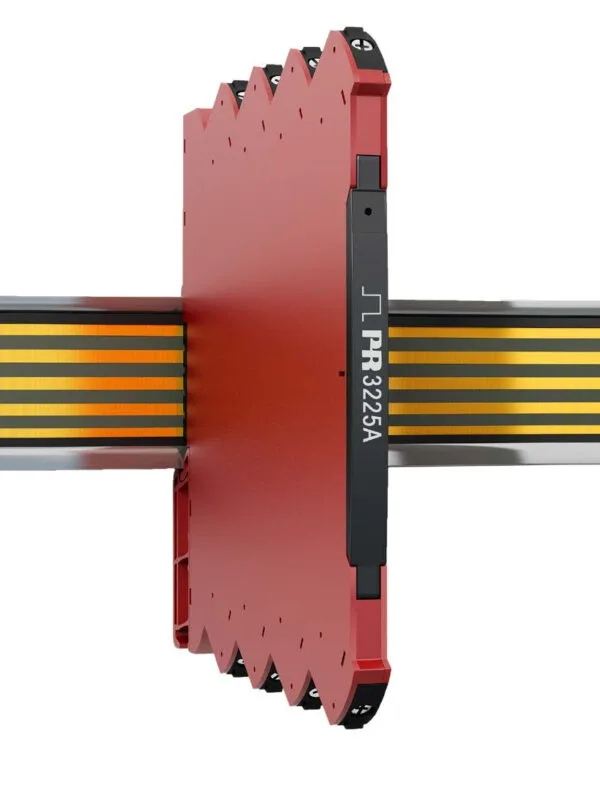

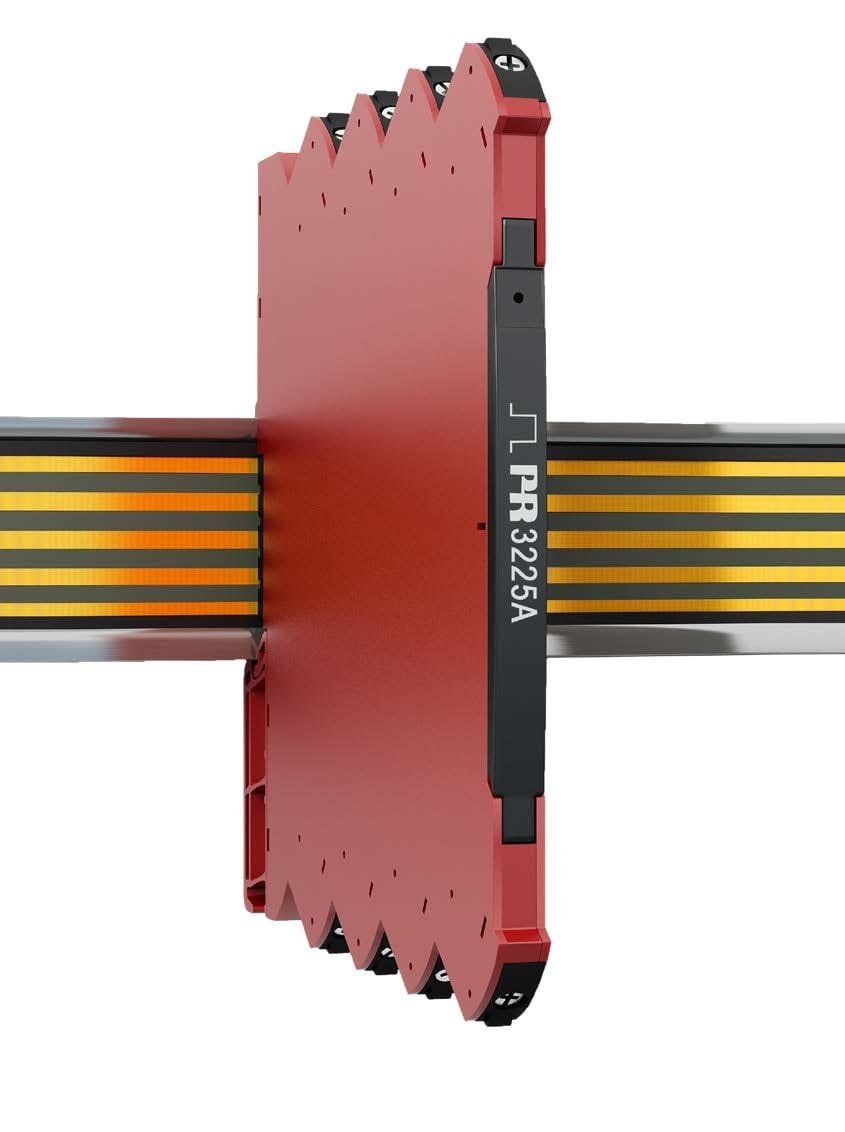

3225 Slim Series Universal Frequency Converter

The 3225 is a universal frequency to current/voltage or frequency to frequency converter. The 3225 accepts a frequency input between 0 and 100kHz and produces an active current output 0-23mA, Voltage output (0-1, 0-5, 0-10, 0.2-1 or 2-10vDC) or a Relay output. The unit is configured via DIP Switches and via 4590 programmer. Units are ATEX, IECEx and UL approved for use in Hazardous Areas.

Need help finding the right product?

Downloads

Description

Description

Features

Measures frequencies up to 100kHz.
Active current output.
Buffered voltage output 10vDC.
2-point process calibration.
User-programmable trigger levels -0.05-6.5V and sensor supply 5-17V.
NAMUR sensor error detection.
Output relay with windows, setpoint and latch functionality.
Simulation of process value during commissioning / maintenance.
Fast response time, with simultaneous sensor error detection (PATENTED).
All terminals are over-voltage protected, polarity protected and short-circuit protected.

Product

Ref

Price

Product Description

3225A

£201.51

PR3225A Slim Series Universal Converter suitable for use in Hazardous Areas. Frequency Input: 0.001Hz to 100kHz. Output: 1 Analogue (Current: 0-20, 4-20, ±10mA, or ±20mA; Voltage: 0-5, 1-5, 0-10, 2-10, ±5, ±10vDC), Power and Off). Power Supply: 24vDC ±30%, via power rail or terminals. 6mm Slimline housing.

3225A-N

£201.51

PR3225A-N Slim Series Universal Converter suitable for use in Hazardous Areas. Frequency Input: 0.001Hz to 100kHz. Output: 1 Analogue (Current: 0-20, 4-20, ±10mA, or ±20mA; Voltage: 0-5, 1-5, 0-10, 2-10, ±5, ±10vDC). Power Supply: 24vDC ±30%, via terminals only. 6mm Slimline housing.

3225B

£190.96

3225B Slim Series Universal Converter suitable for use in Hazardous Areas. Frequency Input: 0.001Hz to 100kHz. Output: 1 Relay Output (Setpoint, Window, Sensor error, Latch, Power and Off). Power Supply: 24vDC ±30%, via power rail or terminals. 6mm Slimline housing.

3225B-N

£190.96

3225B Slim Series Universal Converter suitable for use in Hazardous Areas. Frequency Input: 0.001Hz to 100kHz. Output: 1 Relay Output (Setpoint, Window, Sensor error, Latch, Power and Off). Power Supply: 24vDC ±30%, via terminals only. 6mm Slimline housing.

3405

£71.74

The 3405 Power Connector Unit is an ATEX approved power supply for use with the 9400 Power Rail. The Power Connector can supply up to 100 units and supply up to 2.5A. The Power Connector can be used to provide power to the Power Rail from the supply terminals, or to supply power via the supply terminals from the Power Rail. Unit can be mounted in an ATEX Zone 2 environment.
