PR Electronic 3100 Slim Series Series
3100 Slim Series of 6mm Isolators & Converters - Image 2

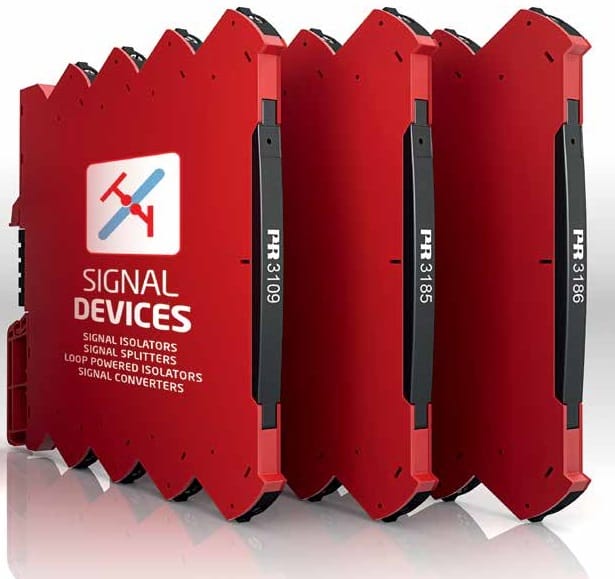

3100 Slim Series of 6mm Isolators & Converters

The Slim Series is a range of 6mm isolators, converters, repeaters and splitters. This series is designed for galvanic isolation of RTD, TC, potentiometer, mA and V signals as well as conversion of these signals into a standard current/voltage signal. The series includes an isolated universal converter, 2-channel devices, signal splitters, repeaters and devices with loop supply >17 V / 20mA. All units are ATEX approved for Zone 2 environments (except 3105).

View Options

Need help finding the right product?

CONTACT US

Description

Applications

The 3100 series is ideal for conversion, isolation, splitting or repeating of analog signals in many industries,
including:

  • Packaging
  • Material handling
  • Printing and paper industry
  • Automotive industry
  • Robotics
  • Building automation and HVAC
  • Industrial cleaning
  • Shipbuilding
  • Test panels
  • Wood industry
  • Power production
  • Process automation
  • DCS manufacturing and PLC integration

Features

  • Rational DIP-switch setting
  • Signal conditioning which ensures that no re-calibration is required after DIP-switch programming.
  • Universal signal conditioning on the isolated universal converter 3114 is configured in seconds using the model 4590 adapter, and the user-friendly model 4501 display.
  • Reliable watchdogs LED indicates an error in the setup, hardware or power supply.
  • Unique protection against wiring errors
  • Effective isolation to EN 61010-1 and EN 61140
  • Easy mounting / dismounting
  • Space-saving design. At only 6 mm wide and can be mounted next to
    each other, permitting up to 330 channels per metre.
  • Flexible supply voltage 24 VDC ±30%.
  • The devices are vibration-tested via DNV and GL approvals and can be retained on the rail with the 9403 module stop.
  • 9400 Power Rail and 3405 Power Connector unit will provide power to up to 100 units with up to 2.5A.
  • 3405 Power Connector unit can provide a power supply to sensors from the Power Rail.
  • All units are suitable for ATEX Zone 2 Environments (Except 3105)

Specifications

Product Code Description Input Output Program Using
3103 Isolated Repeater 0-20mA 0-20mA N/A
3104 Isolated Converter 0/4-20mA
0/2-10V
0/1-5V		 0/4-20mA
0/2-10V
0/1-5V		 DIP-Switch
3105 Isolated Converter 0/4-20mA
0/2-10V
0/1-5V		 0/4-20mA
0/2-10V
0/1-5V		 DIP-Switch
3108 Isolated Repeater / Splitter 0-20mA 0-20mA N/A
3109
 Isolated Converter / Splitter 0/4-20mA
0/2-10V

0/1-5V
 0/4-20mA
0/2-10V
0/1-5V		 DIP-Switch
3114 Isolated Universal Converter 0-20mA
0-10vDC
Thermocouple
PT100, RTD
Potentiometer		 0-20mA
0-10V		 4501 & 4590 Programmer

Power Supply Options


The 3100 Slim Series units can be supplied in various different ways:-

  1. One unit can be connected to suitable 24vDC ±30% power supply and then looped to up to 130 additional units, max 2.5A.
  2. One unit can be connected to a suitable 24vDC ±30% power supply and mounted on to the 9400 Power Rail to distribute power to up to 20 units, max 0.4A

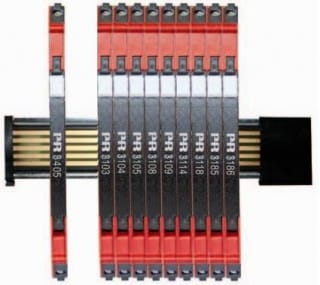

  3. The 3405 Power Connector Unit can be connected to a suitable 24vDC ±30% power supply and then to the 9400 Power Rail to distributor power to up to 100 units, max 2.5A.
  4. The 9410 Power Connector Unit can be connected to a suitable 24vDC ±30% power supply (plus a secondary back-up power supply) and then to the 9400 Power Rail to distributor power to up to 200 units, max 4A.

All devices are ATEX Approved, except 3105, and can safely be used in a safe area, or in ATEX Zone 2 environments.

Product

Ref

Price

Product Description

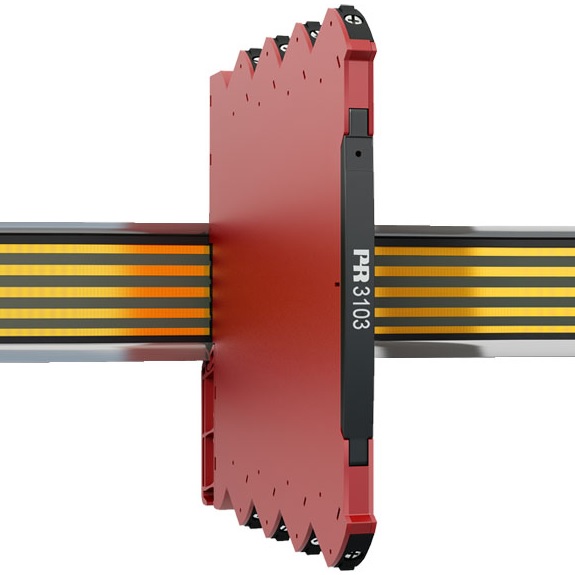

3103

£130.82

PR3103 Slim Series Isolated Repeater suitable for use in ATEX Zone 2 Environments. Isolation and 1:1 conversion of current signals within the range 0-20mA, Response time: less than 7 ms, Accuracy 0.05% of span. Power Supply: 24vDC ±30%, via power rail or terminals. 6mm Slimline housing.
MORE INFO
Add to basket

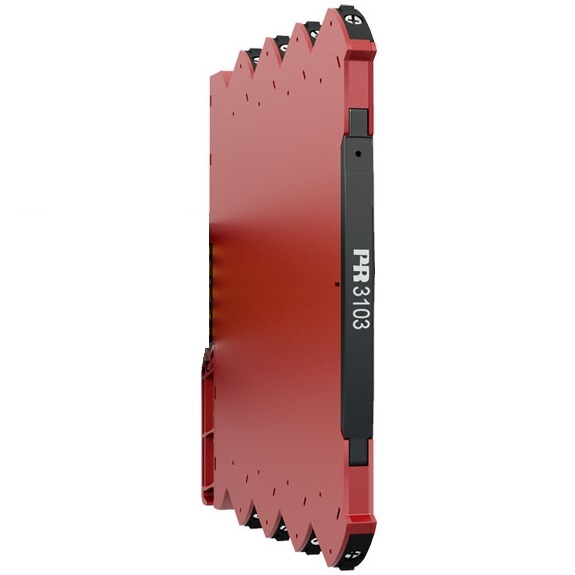

3103-N

£130.82

PR3103-N Slim Series Isolated Repeater suitable for use in ATEX Zone 2 Environments. Isolation and 1:1 conversion of current signals within the range 0-20 mA, Response time: less than 7 ms, Accuracy 0.05% of span. Power Supply: 24vDC ±30%, via terminals only. 6mm Slimline housing.
MORE INFO
Add to basket

3104

£146.65

3104 Slim Series Isolated Converter suitable for use in ATEX Zone 2 Environments. Isolation and conversion of 0/2-10V, 0/1-5V and 0/4-20mA input signals to 0/2-10V, 0/1-5V and 0/4-20mA output signals. Response time: less than 7 ms, Accuracy 0.05% of span. Power Supply: 24vDC ±30%, via power rail or terminals. 6mm Slimline housing. Units are DIP-switch configured.
MORE INFO
Add to basket

3104-N

£146.65

PR3104-N Slim Series Isolated Converter suitable for use in ATEX Zone 2 Environments. Isolation and conversion of 0/2-10V, 0/1-5V and 0/4-20mA input signals to 0/2-10V, 0/1-5V and 0/4-20mA output signals. Response time: less than 7 ms, Accuracy 0.05% of span. Power Supply: 24vDC ±30%, via terminals only. 6mm Slimline housing. Units are DIP-switch configured.
MORE INFO
Add to basket

3105

£128.71

3105 Slim Series Isolated Converter suitable for use in Safe Areas. Isolation and conversion of 0/2-10V, 0/1-5V and 0/4-20mA input signals to 0/2-10V, 0/1-5V and 0/4-20mA output signals. Response time: less than 7 ms, Accuracy 0.05% of span. Power Supply: 24vDC ±30%, via power rail or terminals. 6mm Slimline housing. Units are DIP-switch configured.
MORE INFO
Add to basket
