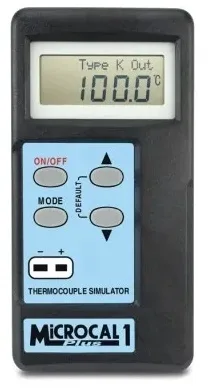

The MicroCal 1+ thermocouple simulator and thermometer. Designed to simulate a chosen temperature to test thermocouple thermometers. It has 12 adjustable temperature point and incorporates a high accuracy thermometer. Comes with a five point UKAS Certificate of Calibration which indicates deviations from standards at the various points and a one meter PVC type K thermocouple lead with miniature connectors. Suitable for thermocouples of types K, J, T, R, N, S and E.
£195.00
The MicroCal 1+ thermocouple simulator and thermometer helps ensure that the frequent checking of thermometer accuracies is a routine operation. The calibrator is designed to simulate a chosen temperature to test thermocouple type K, J, T, R, N, S and E thermometers without the need for specialised equipment or conversion tables. The MicroCal 1+ calibrator both measures and simulates temperature.
The simulator features a custom 10mm LCD display with alpha-numeric display line to prompt the user when changing parameters. Selectable parameters include: °C/°F, auto power off – enable/disable, CJC – internal/external and display contrast adjustment.
An optional lead set is also available, that comprises of seven leads, one for each thermocouple type K, J, T, R, N, S and E. Each PVC lead is one metre long and incorporates two miniature thermocouple plugs.
Each MicroCal 1+ is supplied with a one metre PVC type K thermocouple lead with miniature connectors and a five point (type K) UKAS Certificate of Calibration which indicates deviations from standards at the various points.
This unit should only be used with appropriate thermocouple instruments made to one of the following standards.
| Thermocouple | Description | Min °C | Max °C |
| Type K | Nickel-Chromium/Nickel-Aluminium | -200 | 1372 |
| Type J | Iron/Constantan | -200 | 1200 |
| Type T | Copper/Copper-Nickel | -270 | 400 |
| Type R | Platinum 13% Rhodium | 0 | 1768 |
| Type S | Platinum 10% Rhodium | 0 | 1768 |
| Type N | Nicrosil/Nisil | -200 | 1300 |
| Type E | Chromel/Constantan | -140 | 1000 |
Factory preset temperature values (MicroCal 1+)
| Thermocouple | Type K, J, N & E | Type T | Types R & S |
| Preset 1 | -20°C | -50°C | 400°C |
| Preset 2 | -10°C | -30°C | 500°C |
| Preset 3 | 0°C | -20°C | 600°C |
| Preset 4 | 10°C | -10°C | 700°C |
| Preset 5 | 30°C | 0°C | 800°C |
| Preset 6 | 50°C | 10°C | 900°C |
| Preset 7 | 100°C | 30°C | 1000°C |
| Preset 8 | 195°C | 50°C | 1100°C |
| Preset 9 | 250°C | 80°C | 1200°C |
| Preset 10 | 500°C | 100°C | 1300°C |
| Preset 11 | 800°C | 200°C | 1400°C |
| Preset 12 | 1000°C | 400°C | 1500°C |
The MicroCal 1+ Thermocouple Simulator is a valuable tool for ensuring the accuracy, reliability, and safety of temperature measurement systems in various industries. Their ability to measure and simulate thermocouple signals for multiple different types in a single instrument, makes them indispensable for calibration, testing, troubleshooting, and training purposes.
