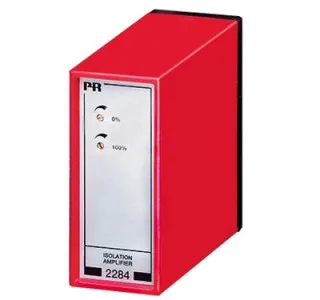

Description

Application

  • Galvanic separation of analogue signals (ground loop elimination).
  • Measurement of floating signals.
  • Signal conversion within the ranges: -250 to +250 VDC or -50 to +50 mA on the input and 0-10 (20) VDC and 0-20 mA on the output.

Features

  • Galvanically separated input, output, and supply
  • Bipolar current / voltage input
  • Signal conversion
  • Current and voltage output
  • 24 VDC or universally supplied
  • Applicable in PELV/SELV circuits

Options

Type Input Output Supply
 Output Type
2284

 A: 0-20mA
B: 4-20mA
C: 0-1V
D: 0.2-1V
E: 0-10V
F: 2-10V
G: 0-2.5V
H: -10 to +10V

 0: Special.
1: 0-20 mA
2: 4-20 mA
3: 0-5 mA
4: 0-1V
5: 0.2-1V
6: 0-10V
7: 2-10V
8: 0-2.5V		 D: 24vDC
P: 24-230vAC
& 24-250vDC

 1: Standard
2: Buffer Voltage


This unit has been discontinued in 2019. Suitable replacements are the 4184 unit available on the links below.
