Description

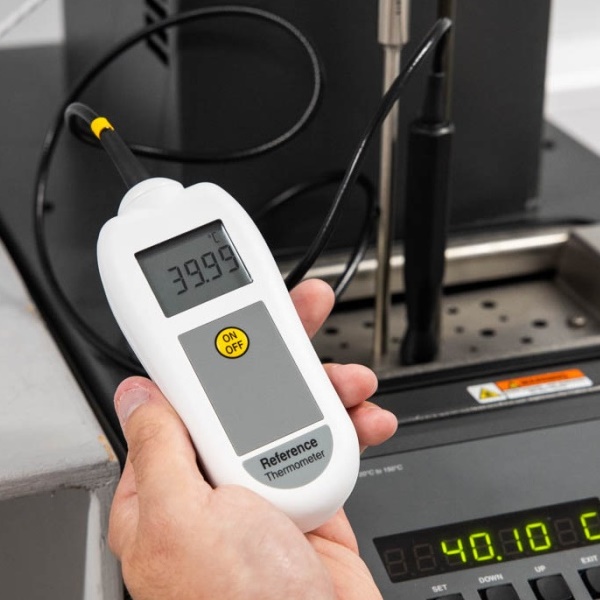

The Reference Thermometers measure temperature over the range of -199.99 to 199.99 °C with a resolution of 0.01 °C and an accuracy of ±0.03 °C. ideal for comparison of the accuracy of other thermometers and probes, when used in conjunction with a stable temperature heat or chill source. The Reference Thermometers are high accuracy PT100 instruments that are supplied with a five-point UKAS Certificate of Calibration. Each certificate indicates deviations from standards at various check points: -18, 0, 40, 70 and 100 °C. Special points may be certified by arrangement with our UKAS calibration laboratory.

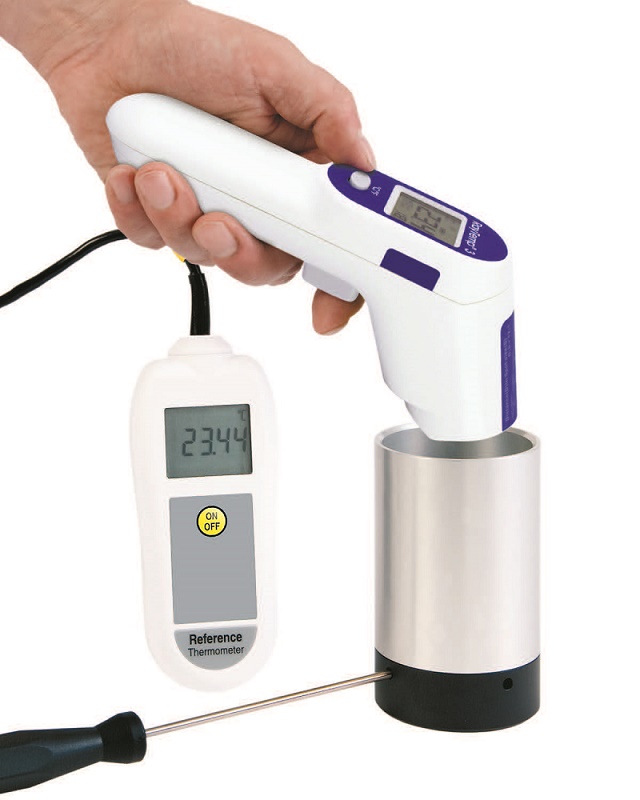

The Reference Thermometer can be used with the Comparator (Part Ref 814-132) to provide an inexpensive way of checking the temperature of infra red thermometers. Allowing you to quickly check the readings being provided by a RayTemp or PyroCouple Infra Red thermometer.
Features
- ±0.03 °C/°F high system accuracy
- 5-point UKAS Calibration Certificate included
- Supplied with a high-accuracy PT100 temperature probe
- Ideal for calibration comparison checks
- Meets the European Standard EN 13485
- Product can be return for future re-calibrations
| Model | Reference Thermometer | |
| Part Number | 222-055 | |
| Temperature Measurement Range | -199.99 to 199.99°C | |
| Resolution | 0.01°C | |
| Accuracy | ±0.03 °C (-49.99 to 149.99 °C) otherwise ±0.1 °C | |
| Battery | 3 x 1.5 volt AAA | |
| Battery Life | 2000 Hours | |
| Sensor Type | PT100 1/10th DIN, Ø3.3 x 130 mm with 1m PVC Lead | |
| Display | 10mm LCD | |
| Min/Max | No | |
| Dimensions | 25 x 56 x 128 mm | |
| Weight | 210g | |
| Case Material | ABS plastic includes Biomaster product protection | |
| Certification | UKAS calibration certificate | |
| Conforms to Standard | EN 13485 | |
| Guarantee | Two Year | |
