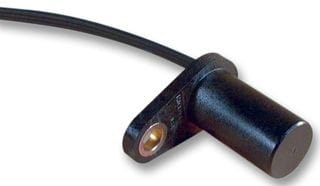

Hall effect gear tooth sensor. Supply: 4.5 to 24VDC. Output 40mA sinking switch (open collector). 100kHz operating speed. -40 to +150°C temperature range.
£61.96
| Product Type | Hall-Effect Gear Tooth Sensor |
| Package Style | Plastic Probe |
| Supply Voltage | 4.5 Vdc to 24.0 Vdc |
| Output Type | Sink |
| Termination Type | Lead Wire |
| Operating Temp Range | -40 °C to 150 °C [-40 °F to 302 °F] |
| Output Voltage | 0.4 Vdc max. |
| Vane and Geartooth Target Material | Cold Rolled Steel, 1018 or Low in Carbon (Annealed) |
| GT Target RPM | 10 RPM min., 3600 RPM max. |
| Switching Time Rise (10 % to 90 %) | 15 µs max. |
| Switching Time Fall (90 % to 10 %) | 1.0 µs max. |
| Operate Point | 3.3 ° ± 1.25 ° [3,28 ° ± 1,13 mm] |
| Release Point | 4.4 ° ± 2.50 ° [4,16 ° ± 2.21 mm] |
| Supply Current | 20 mA (max. @ 25 °C) |
| Output Current |
40 mA (max.) |
| GT Target Min Tooth Height | 5.06 mm [0.200 in] |
| GT Target Min Tooth Width | 2,54 mm [0.100 in] |
| GT Target Min. Tooth Spacing | 10,16 mm [0.400 in] |
| GT Target Thickness | 6,35 mm [0.250 in] |
| GT Target Diameter | 101,6 mm [4 in] |
| GT Airgap | 1,02 mm to 2,03 mm [0.040 in to 0.080 in] |
| Leakage Current max. | 10 µA |
| Differential | 8.4 ° ± 3.70 ° [7,45 ° ± 3,34 mm],N/A |
| Series Name | GT |
