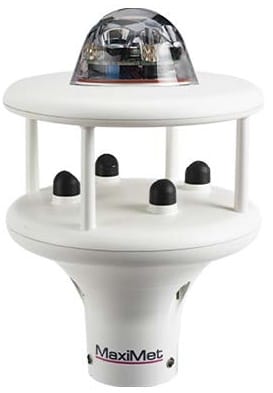

GMX240 Weather Station

Description

Wind

  • Relative Wind Speed & Direction. Relative to the North Marker
  • Average Wind Speed & Direction. Short and Long Term Averages
  • Corrected Wind. Corrected to Magnetic North
  • Gust Speed & Direction (WMO)

Rainfall

  • Integrated Optical Rain Sensor
  • Precipitation Total
  • Precipitation Intensity
  • Precipitation Status
  • Readings for General Indication Only.

Inclinometer/Compass

  • Compass Reading (0-359° Magnetic North)
  • X -Tilt. +ve East, -ve West
  • Y -Tilt. +ve North, -ve South
  • Z Orientation, +1 Normal Upright, -1 Inverted Position
  • X & Y Can Provide 2 Decimal Points for Easy Installation.

Additional Parameters

  • Twilight. (Civil, Nautical and Astronomical)
  • Time of Sunrise, Solar Noon, Sunset (Location Required)
  • Position of the Sun
  • Angle of Tilt
  • Supply Voltage
  • Time and Date
  • Custom User Information (up to 16 character)

Parameter Specifications

Parameter Range Resolution Accuracy Units of Measure
Wind Speed 0-60m/s 0.01m/s 0.3m/s (0-10m/s)
3% (10-40m/s)
5% (40/60m/s)		 m/s, Km/h, mph,
kts, ft/min
Wind Direction 0-360° 1° ±3° (0.5-40m/s)
±5° (40-60m/s)		 Degrees
Compass 0-360° 1° ±3° Degrees
Rainfall 0 to 150mm per hour 0.08mm mm or Inch



GMX240 Specifications

Output Rate: 1Hz, 1 reading per minute, 1 Reading per hour, or Polled Mode
Digital Comms: RS232, RS485, RS422, SDI-12, NMEA, Modbus, ASCII
Power Supply: 5-30vDC
Consumption @ 12vDC: 64mA
IP Rating: IP66
Operational Temperature Range: -35 to +70°C
CE Marking: Yes

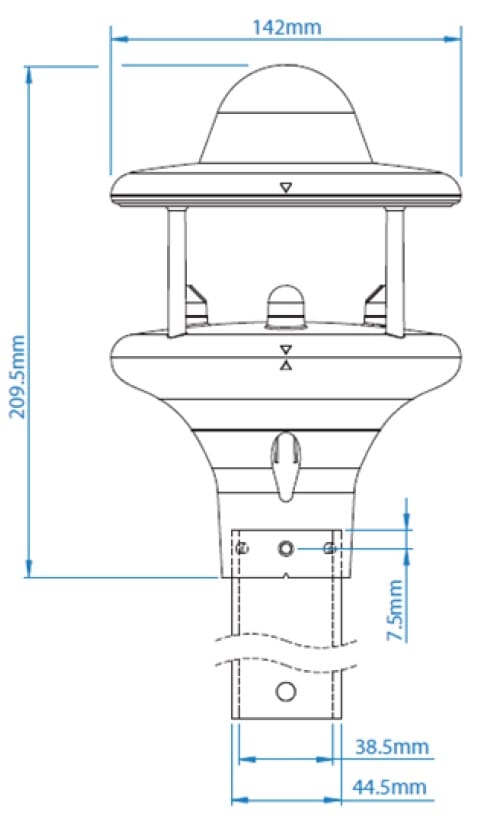

Dimensions: 209.5 x 142 x 142mm
Weight: 0.5Kg
Origin: UK
Warranty: 24 Months
