Description

Features

• Ideal for both dirty and clean fluid applications.
• Analog and digital outputs.
• Data logger with graphical display of data.
• Simple setup and installation.
• Built in help.
• Automatic speed of sound measurement and flow profile correction algorithm.*
• Measure flow rate and energy consuption and flow within a pipe without cutting the pipe.
• Easy to attach clamp-on sensors.
• Suitable for all commonly used sonically conductive pipe materials and liquids.
• Clearly laid out high tactile response keypad.
• Very large flow measuring range with no complicated upper velocity limits.
• Wide range of special application sensors including sensors suitable for concrete lined pipes*.
• Latest transit time correlation signal detection system and Doppler

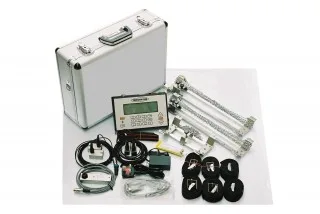

The 190PDE portable heat meter is supplied with two matched precision temperature probesthat are to be clamped to the flow and return pipes of the heating or cooling system, they can be inserted into pockets if available or coupled to the pipe using heat transfer cement.

The unit measures the flow rate and the temperature difference, then using the internally stored specific heat capacity and density of the selected fluid at the measured temperature automatically calculates the energy flow rate and energy total. Very accurate measurements are possible easily meeting the accuracy requirements of EN1434. For permanent applications, a 190F unit is available with a BTU computer for heat metering applications.
