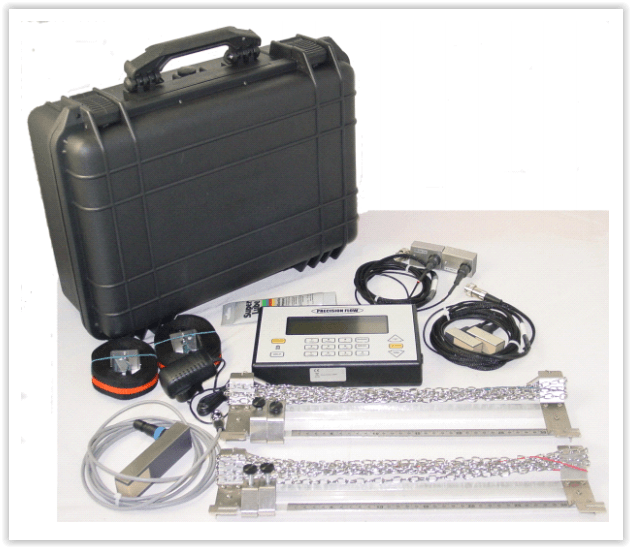

190P Portable Dual Mode Clamp-on Ultrasonic Flow meter. Kit comprises of handheld meter, probes for pipe sizes from 15-1200mm, sensor guide rail, chains and straps, mains charger, ultrasonic couplant, manual, Aluminium flight case.
Products available below, or contact us for more options and pricing.
190PD Portable Clamp-on Ultrasonic Flow meter.
Complete kit suitable for:
Pipe Sizes: 15mm to 1200mm
Temperature: -300 to 1050°C pipe sensors. (intermittent use to 1300°C).
Flow Sensors: 2 pairs of transducers ( WPG and XPG )complete with 3m length cable
For windows operating systems up to windows 10
Log simple for firmware versions up to but not including version 2.17
LOGSIMPLEV1.2a Installation instructions
Log simple for firm ware version 2.17 on
LOGSIMPLEV1.2 Installation instructions
USB drivers for Prolific lead
WindowsUSBDriver Installation instructions
Alternative programs:
Hyper terminal available from https://www.hilgraeve.com/hyperterminal-trial/
Hyperterminal is included in windows 7 professional under the XP virtual machine.
Manual installation instructions for HyperTerminal
Make a new folder under C:Program FilesHyperTerminal for 32-bit and for 64-bit make a new folder C:Program Files (x86)HyperTerminal
From you old PC copy the following 3 files to the folder that was just created on the Windows X box:
C:Program FilesWindows NThypertrm.exe
C:WINDOWSsystem32hypertrm.dll
C:WINDOWSHelphypertrm.chm
Now just run hypertrm.exe and HyperTerminal is on Windows
If you want to have HyperTerminal on your Start Menu just create a shortcut to hypertrm.exe and put it in C:ProgramDataMicrosoftWindowsStart MenuPrograms and when you go to All Programs under the Start Menu HyperTerminal will be there.
if you need help with locating the files or installing the program please contact us.
