Description

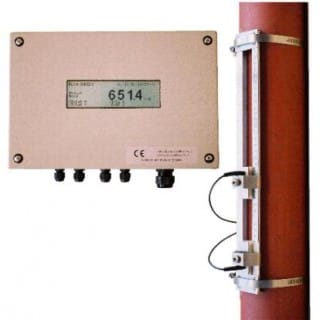

190F-WPG Wall mount unit,mains or 24vDC supply, with probes for pipe sizes 25-6500mm, clamping straps, instruction manual, 4-20mA, pulse, RS232 outputs

Key Benefits

• Measure flow rate within a pipe without cutting the pipe.
• Latest correlation signal detection system.
• Measurement not dependent on fluid speed of sound.
• AZW adaptive zoom windowing technology as standard.
• No complicated upper velocity limits on sensors.
• Built in Reynolds number correction.
• Suitable for all commonly used sonically conductive pipe materials and liquids.
• Extremely easy to attach clamp-on sensors with no process interruption.

Specification

Wall Electronics Enclosure
Protection Class : IP66
Material : Painted Steel
Weight : 4.3 Kg
Dimensions : 235 mm x 300 mm X 80 mm (with glands)
Display : 240 x 64 graphics LCD with backlight
Keypad : 1

7 key tactile membrane (behind front panel)
Temperature range : 0ºC to +50ºC (operating) -10ºC to +50ºC (storage)
Power supply 100 to 240 V AC or 12V DC
Volumetric flow units : m3, gallons (Imperial and US), Liters
Velocity units : metres/sec, feet/sec
Flow velocity range : 0.01 m/sec to 25 m/sec to 4 significant figures
(option higher if required)
Total volume : 12 digits forward and reverse
Continuous signal quality indication
Status messages
Analogue 4-20mA into 750_ : User definable scaling
Resolution : 0.1% of full scale
Pulse 5 Volts User definable scaling
Serial RS232 USB
Data Logging memory capacity 120,000 data points
Data Logging output Via RS232 or displayed graphically/numerically
Transducer Standard WPG type Pipe size : 25mm-300mm
Protection Class : IP66
General service temp short term :-30 to 130°C
General service temp long term :-30 to 105°C
Transducer Standard XPG type Pipe size : 50mm-1200mm
Protection Class : IP66
General service temp short term :-30 to 130°C
General service temp long term :-30 to 105°C
Transducer Standard YPG type Pipe size : 100mm-6500mm
Protection Class : IP66
General service temp short term :-30 to 130°C
General service temp long term :-30 to 105°C
Application specific transducers are available on request
Repeatability ±0.5% with unchanged transducer positions
Accuracy ± 1% to± 2% or ± 0.02 m/sec whichever is the greater, depending on application.
The specification assumes turbulent flow profile.
