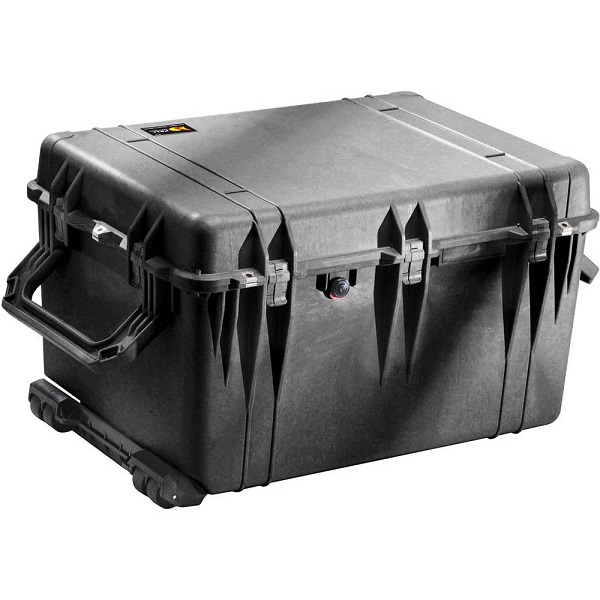

1660 Peli Case

1660 Peli Case

The 1660 Peli case is a large waterproof case, great for storing larger pieces of equipment that require the ultimate protection.  The 1690 protective carry case is IP67 rated and can be supplied with the Pick N Pluck foam insert or lid organiser. Cases are available in black with standard interior dimensions of 784L x 660W x 394H. Omni Instruments can also customise your peli case by fitting it with equipment supplied providing a fully portable solution for any of our equipment.

Clear

Need help finding the right product?

CONTACT US
  • Description
  • Additional information

Description

The 1660 case can be supplied with the unique Pick ‘N Pluck™ foam insert to provide an easily customised protective inserts to provide the maximum protection for fragile equipment. The foam is pre-cut which allows you to easily customise the interior by half inch cubes. Trace out the item you want in the case and simply pluck the foam out by hand, no special tools required. You can customise your case in less than 15 minutes. Replacement foam inserts are available to allow you to reconfigure an existing case, or to replace existing foam. A padded divider set and lid organiser are also available.

It is unbreakable, watertight, airtight, dustproof, chemical resistant and corrosion proof. These are some of the features of this Peli Case that offers total protection for your equipment. It is made of Ultra High Impact structural copolymer that makes it extremely strong and durable. Your equipment can fit into the high density foam of the case for total subjection and protection against impact, vibration or shock.

Features

  • Automatic purge valve for quick equalisation after changes in atmospheric pressure
  • Easy-open latches
  • Retractable handle
  • Rubber ‘O-ring’ seal
  • Wheels
  • Stainless steel padlock hasps
  • IP67 rated protection

Specification

Internal: 740 x 522 x 446mm
Internal Lid Depth: 88mm
Internal Base Depth: 358mm
External Dimensions: 802 x 584 x 495mm
Empty: 15.5kg
With Foam: 19.1Kg

Padded Divider Set

The 1660 padded divider set for the 1690 Protector Case is a great way to organise equipment inside the case, and it also provides adequate padding for extra protection from impacts. Each set comes with the lid foam to ensure ultimate protection, and keep your gear in place whilst travelling.



Lid Organiser

A lid organiser is a great way to make full use of the space in the lid of your 1660 Protector Case, providing pockets for small accessories.

The organiser comes with screws to be screwed into pre-moulded lid bosses inside the case. If your case is an older version, and does not feature the lid bosses, you will need to source adhesive-backed Velcro to attach the lid organiser.









TAS Lock

The TSA lock will prevent your lock from being cut if your luggage needs to be searched, as every TSA lock with the red Travel Sentry diamond logo has a keyhole underneath that allows the TSA to use their special TSA key*. Not only does this save replacing a lock, but it also ensures that your case remains secure after it’s been searched.



Additional information

Weight N/A
Dimensions N/A
Colour

1660 Pelicase in Black, 1660 Pelicase in Desert Tan

Insert

Case Without Any Insert, Case with Three Layered Pick n Pluck Foam, Case With Dividers

1660-DIVIDER-SET

£410.35

1660 Divider Set for the 1660 Pelicase. Includes velcro dividers and provides additional padded protection for your equipment. Comes with the convoluted lid foam
MORE INFO
Add to basket

1660-LID-ORGANISER

£89.71

The 1660 Lid Organiser allows the space in the lid of your 1660 pelicase to be used to store various accessories and tools in small pockets. The organiser can be secured in place with the supplied screws into pre-moulded bosses inside the lid.
MORE INFO
Add to basket

TAS-LOCK

£24.38

The TAS-LOCK is a three-digit combination lock that can be used to secure your pelicase. It features a Travel Sentry Diamond logo that can be used by the TSA (Transport Security Administration) to open the padlock to allow them to check the contents, whilst still allowing them to reseal the case again for its onward journey.
MORE INFO
Add to basket
