Description
Windsonic M Series with analogue outputs come with 12-pin connector and mounting kit consisting of:
| Item | Quantity |
|---|---|
| 12 Way Connector Body | 1 |
| Connector Contacts | 12 |
| Connector Sealing Gland | 1 |
| Connector Sealing Washer | 1 |
| Mounting Screws – M5 stainless steel | 3 |
| Mounting Screw M5 Washer shake proof | 3 |
| Earthing Screw – M4 x 6 Stainless | 1 |
| Earthing Shakeproof Washer, M4 | 1 |
| Earthing Ring Terminal Tag, M4 | 1 |
A spare WindSonic Connector, Part Number 1405-PK-112, suitable for WindSonic M with analogue outputs is available separately and consists of the 12-Way Connector Head, Part Number 020-04990, and 7 piece Metal Back Shell, Part Number 020-04991, 3 x Solder Bucket Connector Packs, Part Number 020-04469, (Each with 5 Connectors).

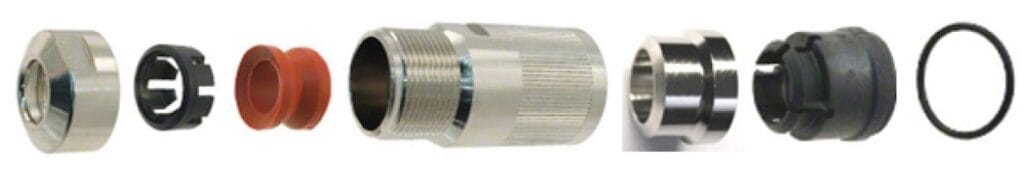

7 Piece Metal Back Shell

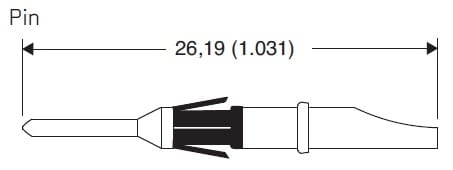

Solder Bucket Contacts

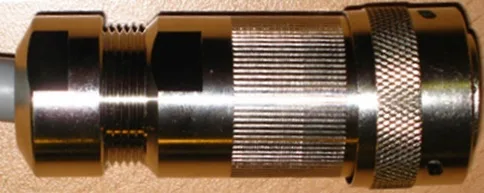

Assembled Connector
