Description
Windsonic M Series with analogue outputs come with 9-pin connector and mounting kit consisting of:
Item | Quantity |
---|---|
9 Way Connector Body | 1 |
Connector Contacts | 9 |
Connector Sealing Gland | 1 |
Connector Sealing Washer | 1 |
Mounting Screws – M5 stainless steel | 3 |
Mounting Screw M5 Washer shake proof | 3 |
Earthing Screw – M4 x 6 Stainless | 1 |
Earthing Shakeproof Washer, M4 | 1 |
Earthing Ring Terminal Tag, M4 | 1 |
A spare WindSonic M Connector, Part Number 1405-PK-111, suitable for WindSonic M with serial outputs is available separately and consists of the 9-Way Connector Head, Part Number CL1F1201, and Connector Female Contact, Part Number CM10SC10MQ, Sealing Gland Clipper Size 1, Part Number CL101021.

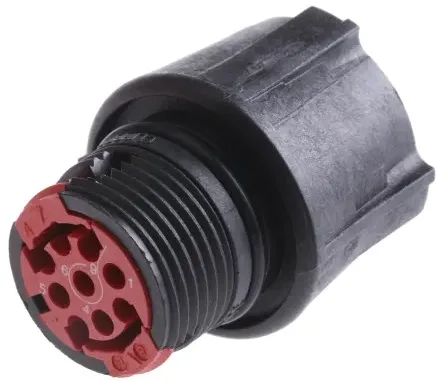

9-Way Connector Head
Connector Female Contact

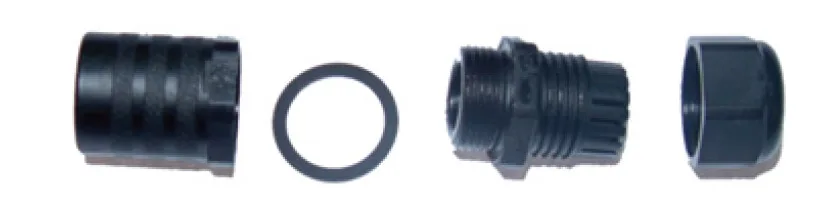

Sealing Gland Clipper Size 1
