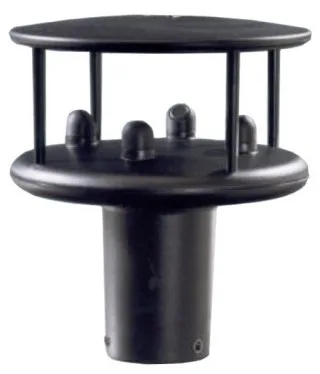

The WindSonic 60, Part No. 1405-PK-038, is a robust, versatile, solid state sensor for wind speed and direction monitoring. Wind speed 0-60m/s, accuracy ±2%, wind direction 0-359°, accuracy ±3 degrees. Outputs RS232, RS422, RS485, Operating temperature -35 to +70°C, Storage temperature -40 to +80°C. Input voltage 7-30vDC, from 9mA @ 12vDC. Corrosion-free Polycarbonate housing. Anemometers are supplied with Windcom software and a mating connector. If required, we can add cable before shipping.
The WindSonic 60 has no moving parts, or cups that can easily be damaged, the WindSonic anemometer can be positioned in the grating over the mounting pit protecting a rain bucket, or where birds have previously damaged the more delicate cup anemometer. Providing consistent, useful wind data with minimal disruption or downtime.
Features
- Wind Speed & Direction Sensor
- 0-60m/s (116 knots) Wind Speed
- 0-359° Wind Direction
- NMEA Output
- ASCII Output
- Low Power Consumption
- Maintenance Free.
- Free WindCom Software
Typical Applications
- Building controls
- Small airports & helipads
- Road & rail tunnels
- Environmental field sites
- Weather monitoring stations
- Portable weather stations
Specifications
| Version | WindSonic |
| Wind Speed Range | 0-60m/s (0-116 knots) |
| Wind Direction | 0-360° (no dead band) |
| Starting Threshold | 0.01m/s |
| Accuracy | Wind Speed 2%, Direction 2° @ 12m/s |
| Resolution | Wind Speed 0.01m/s, Direction 1° |
| Ultrasonic Output Rate | 0.25, 0.5, 1, 2 or 4Hz |
| Outputs | RS232, RS422, RS485 and NMEA |
| Parameters | Wind Speed & Direction or U & V Vectors |
| Units | m/s, knots, mph, kph, ft/min |
| Power Supply | 5-30vDC (Dependant on Output) |
| Housing Material | Polycarbonate |
| Size | 142 x 160mm |
| Weight | 0.5Kg |
