Description
Features
- Power Communications Interface for WindObserver IS
- Robust Stainless Steel Enclosure
- For Use in Non-Hazardous Areas with IS Connection to Hazardous Area
- ATEX, IECEx & UKEX certification
- AC Mains Voltage Power Supply.
- Galvanic Isolation Between Input Power and Anemometer Supply
Specifications
Digital Output
| Communication:
|
RS422, Full Duplex, WindObserver IS to PCI RS232 and RS422 (Data from PCI) System Data Lines Opto Isolated and Protected with Zener Barriers |
| Baud Rates: | 1200, 2400, 4800, 9600, 19200. |
| Formats: | 8 bit data; odd, even or no parity |
| Anemometer Status: | Supplied as Part of Standard Gill Message (NMEA Output Includes V and A Codes as Part of the Message |
Power Option
| Option: | AC Supply (PCI) |
| Input Power: | 100-120vAC, 10VA for the 115V Switch Position 200-250vAC, 10VA for the 230V Switch Position |
| Galvanic Isolation: | Between Input Power and WindObserver IS |
| Anemometer Supply: | 6-12vDC, 30mA Peak (from PCI or LVPCI All Circuits Protected to 0.8 Joules |
| PSU Enclosure: | 316 Stainless Steel |
| Dimensions: | 230 x 325 x 175mm |
| Weight: | 9.5Kg |
| IP Rating: | IP65 |
| Operating Conditions: | -30 to +60°C, 5-95%RH |
| EMC: | EN61000-6-1:2007, EN61000-6-3:2007/A1:2011 |
| Approvals: | ATEX, IECEX & UKEX Certification |

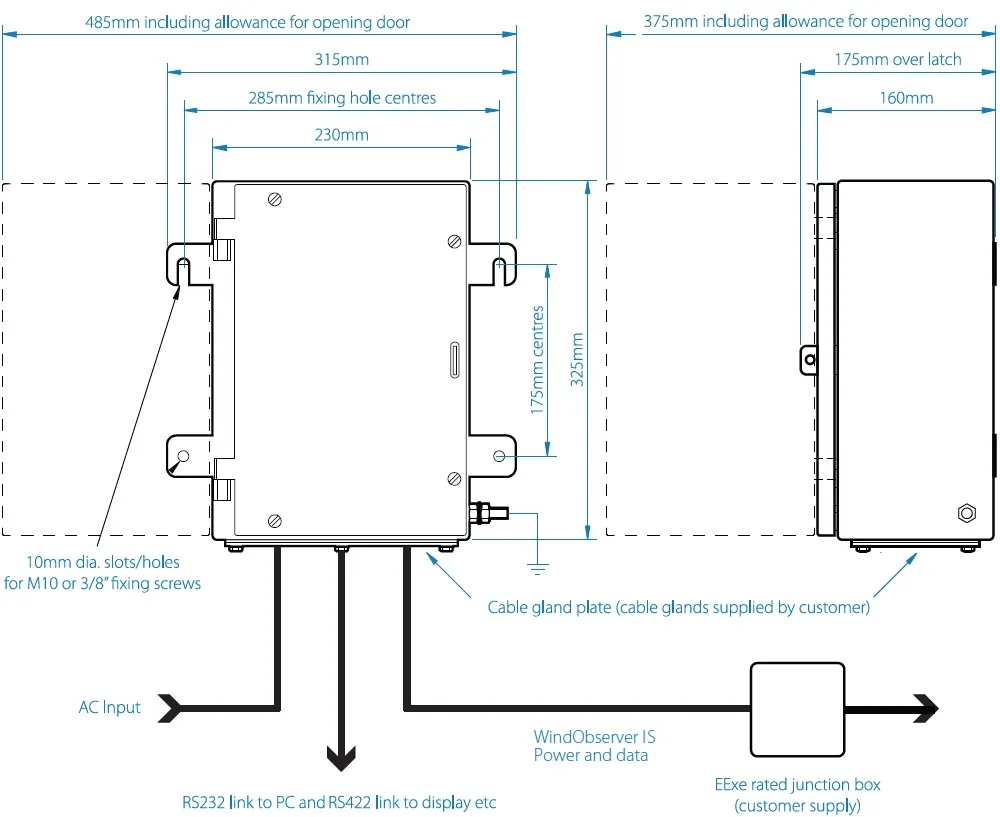

Enclosure Diagram
