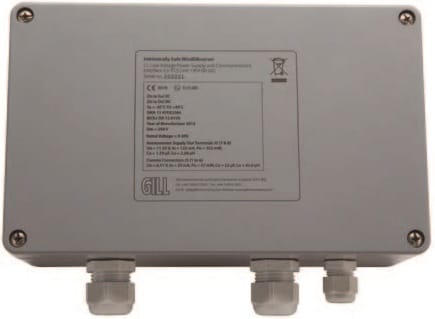

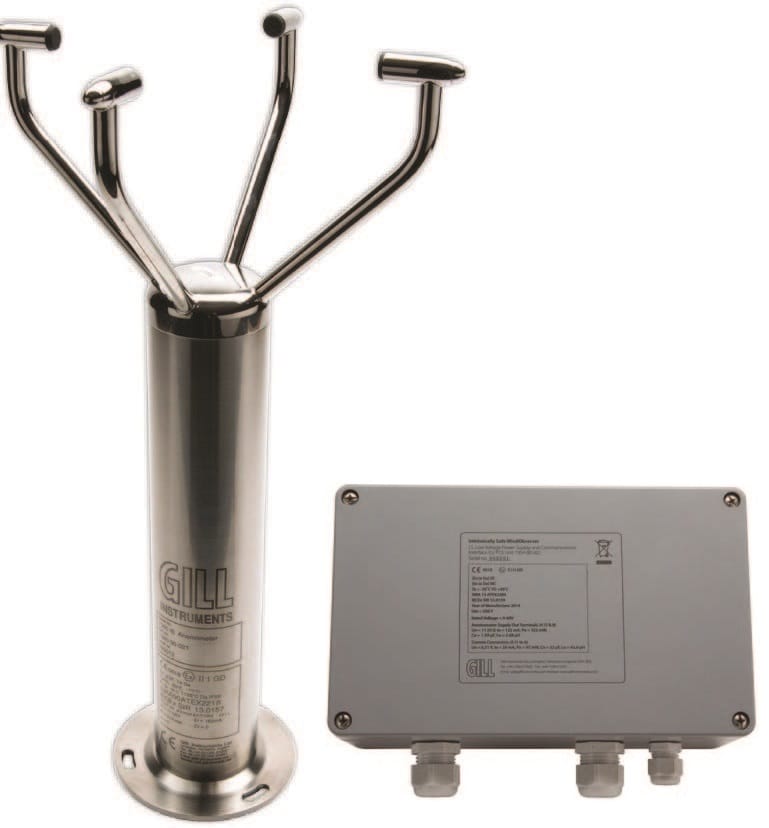

WindObserver Intrinsically Safe System with Low Voltage PSU. WindObserver IS Ultrasonic Anemometer with an IP66 Stainless Steel housing. Wind Speed 0-75m/s, Accuracy 2%, Wind Direction 0-360°, Accuracy ±4°. Low Voltage Power Communications Interface (LVPCI) Housed in 316 Stainless Steel Enclosure. Power Supply: 9-30vDC @ 200mA Max with Galvanic Isolation. RS422 Comms Anemometer to PCI. Operating Conditions: -30 to +60°, 5 to 95%RH. System comes with WindObserver IS Anemometer, Mounting Kit, 20 Way Connector Kit, Protective Head Cover, LVPCI Power Supply, 3m Test Cable and Downloadable Wind & WindView Software.
£11,322.00
| Range: | 0-75m/s (0-168mph) |
| Starting Threshold: | 0.01m/s |
| Accuracy: | ±2% @ 12m/s |
| Resolution: | 0.01m/s |
| Range: | 0-359° (no dead band) |
| Accuracy: | ±4° |
| Resolution: | 1° |
| Ultrasonic Output Rate: | 1Hz, 2Hz or 4Hz |
| Parameters: | UV, Polar and NMEA |
| Units: | m/s, knots, mph, kph, ft/min |
| Averaging: | 0 to 3,600 seconds |
| Communication:
|
RS422, Full Duplex, WindObserver IS to LVPCI RS232 and RS422 (Data from LVPCI) System Data Lines Opto Isolated and Protected with Zener Barriers |
| Baud Rates: | 1200, 2400, 4800, 9600, 19200. |
| Formats: | 8 bit data; odd, even or no parity |
| Anemometer Status: | Supplied as Part of Standard Gill Message (NMEA Output Includes V and A Codes as Part of the Message |
| Option: | DC Supply (LVPCI) |  |
| Input Power: | 9 to 30vDC @ 200mA Max | |
| Galvanic Isolation: | Between Input Power and WindObserver IS | |
| Anemometer Supply: | 6-12vDC, 30mA Peak (from PCI or LVPCI All Circuits Protected to 0.8 Joules |
|
| PSU Enclosure: | Fibox Euronord Polyester | |
| Dimensions: | 260 x 160 x 93mm | |
| Weight: | 2.4Kg | |
| IP Rating: | IP54 | |
| Operating Conditions: | -30 to +60°C, 5-95%RH | |
| EMC: | EN 61326-2-1:2013, EN 61204-3:2000, EN 60945:2002 clause 9 and 10 |
|
| Approvals: | ATEX, IECEX & UKEX Certification |
